ASX-12 Neuheit

• With an impressive power of 3500W RMS and 2+2 Ohm.
• Technical efficiency through QMS 3.44, QES 0.35, QTS 0.32.
• Robust construction, cast aluminum basket, carbon membrane, ventilated gap.
• More technical details

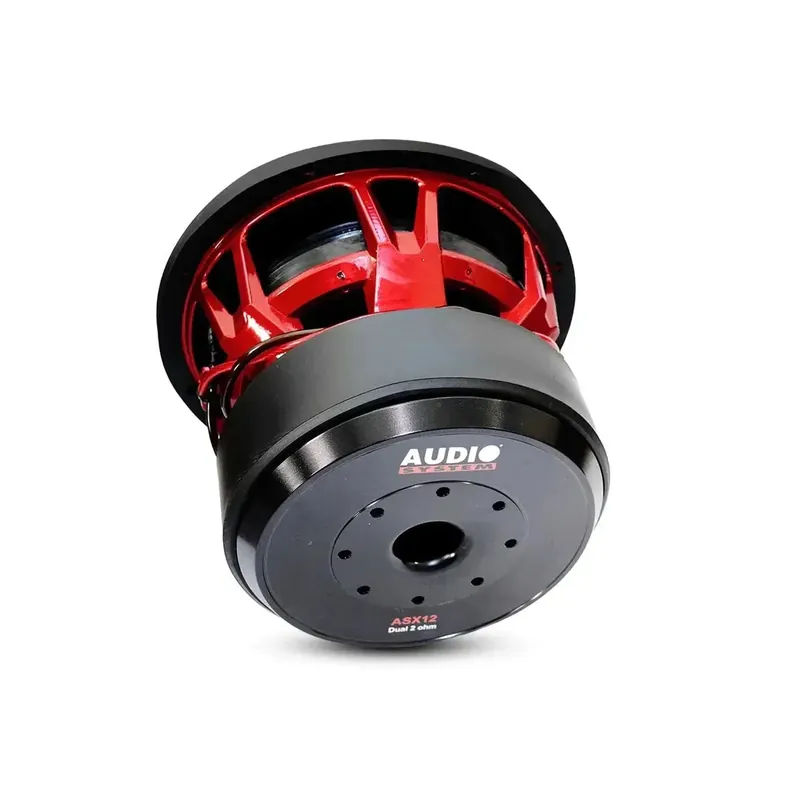

Discover the ASX-12, a 12-inch subwoofer from Audio System Italy that harmonizes innovative technology with elegant style. This subwoofer is equipped with a powerful 3500Watt RMS output and offers a combination of high sound quality and impressive bass performance. Its technical features, such as a QMS of 3.44, QES of 0.35, and QTS of 0.32, highlight its efficiency and performance. The ASX-12 stands out with its robust construction featuring an aluminum die-cast basket and carbon diaphragm. Additionally, the ventilated air gap technology ensures improved heat dissipation. With a weight of 30 kg and a recommended enclosure size starting from 60 liters, it is a premium device for audiophiles.

Technical Data

• 12 inch 30cm SPL subwoofer 2+2 Ohm
• 3500Watt RMS
• Fs: 33 Hz
• QMS: 3.44
• QES: 0.35
• QTS: 0.32
• VAS: 19.5L
• SPL: 85 dB 1W/m
• Re: 2+2 Ohm, Xmax: +/-21mm
• 100mm voice coil
• Aluminum die-cast basket
• Carbon diaphragm
• Ventilated air gap
• Pole core drilling
• Outer diameter 324mm
• ED: 286mm
• Installation depth: 216mm
• 30kg
• Enclosure recommendation: Bass reflex: from 60 liters
