Beliebt Dieci DCX 710.3

• Power 300 watts peak, 150 watts continuous, impedance 4 ohms.
  High-density ferrite magnet, water-repellent material.
  Frequency response 40-21k Hz, efficiency 93 dB, depth 110 mm.

• More technical details

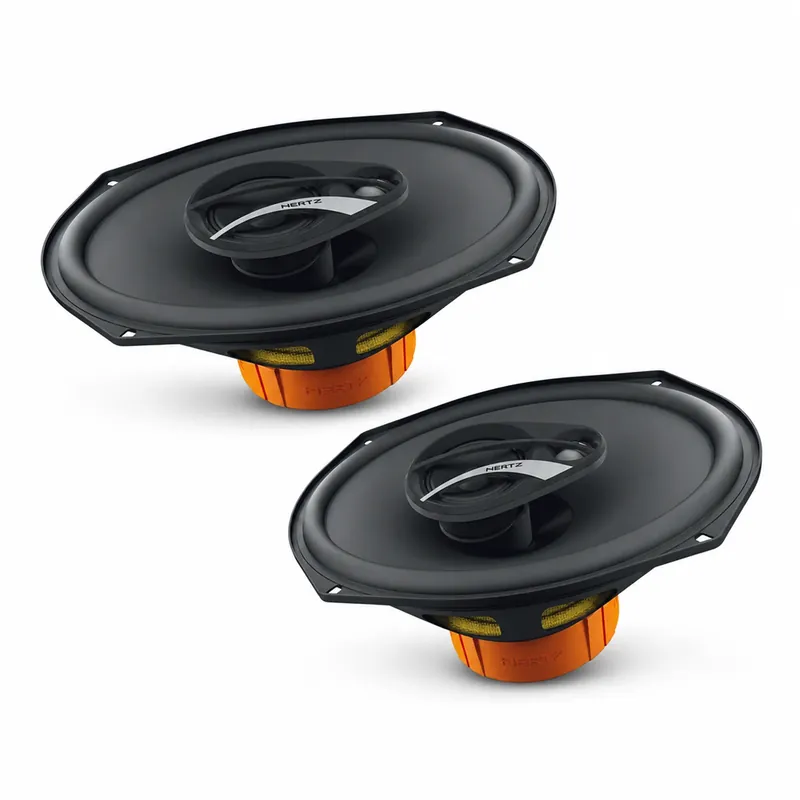

The Dieci DCX 710.3 by Hertz is a 6×9 inch coaxial speaker with a continuous power handling of 150 Watts and a peak value of 300 Watts. The system has an impedance of 4 Ohms and covers a frequency range from 40 Hz to 21 kHz. The construction includes a water-resistant membrane made of pressed paper as well as a high-density flux ferrite magnet. As a 3-way coaxial, the model uses a TPU surround, a midrange driver with a diameter of 60 mm, and a PEI dome tweeter. The mounting depth is 110 mm with a sensitivity of 93 dB. An oversized magnet group and a 25 mm woofer voice coil are also integrated.

Features

• 6×9 inch coaxial speaker
• Power handling: 150 Watts RMS
• Power handling: 300 Watts Max
• Impedance: 4 Ohms
• Water-resistant membrane made of pressed paper
• High-density flux ferrite magnet for woofer and tweeter
• TPU surround
• 60 mm midrange driver and PEI dome tweeter
• Woofer voice coil: 25 mm diameter
• Weight per speaker: 1.35 kg

Technical Specifications

• Frequency response: 40 Hz – 21 kHz
• Sensitivity: 93 dB
• Mounting depth: 110 mm
• Dimensions A1: 253 mm
• Dimensions A2: 181 mm
• Dimensions B1: 238 mm
• Dimensions B2: 167 mm
• Woofer magnet size: 90 x 32 x 17 mm
• Fs: 69 Hz
• Vas: 23.0 l
• Mms: 22.0 g
• Cms: 0.24 mm/N
• BL: 4.9 T*m
• Qts: 1.06
• Qes: 1.31
• Qms: 5.50
• Re: 3.3 Ohm
