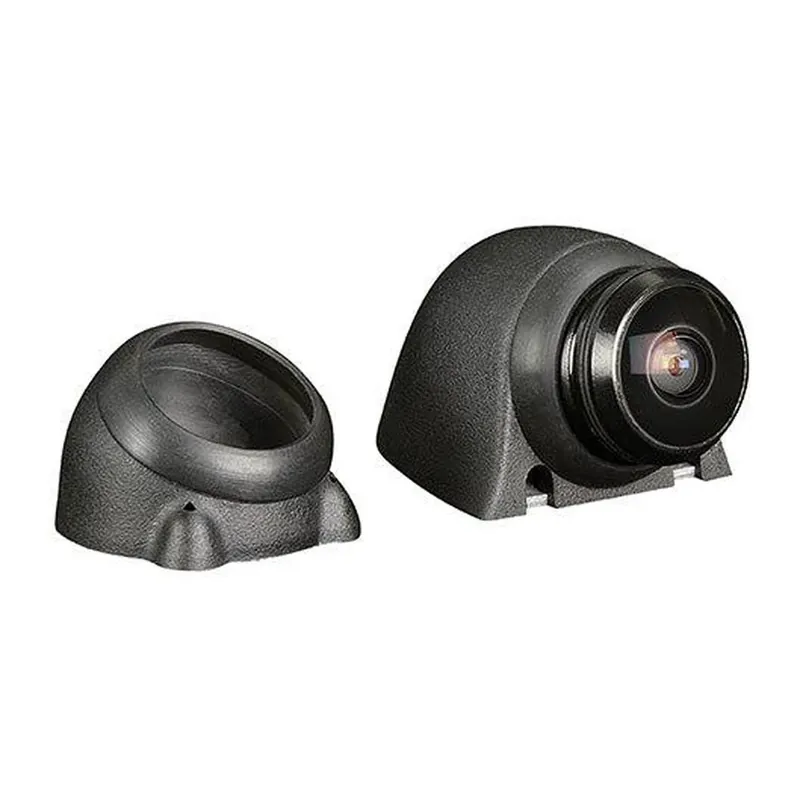

Bestpreis RVC85WA

• CMOS Sensor ¼“/6.4 mm, focal length f1.05, NTSC 60 Hz, IP69K.
• Viewing angle 210°x190°x140°, light sensitivity 0.5 Lux.
• Resolution 680×512 pixels, video output 1.0 Vp-p, 75 Ohm CVBS.
• More technical details

The RVC85WA from Zenec is a versatile camera accessory that features a ¼“ / 6.4 mm Aptina ASX340 CMOS sensor. It offers a focal length of f1.05 and operates in the NTSC TV system at 60 Hz. With an impressive viewing angle of 210° (D) x 190° (H) x 140° (V) and a native sensor resolution of 680 (H) x 512 (V) pixels, it delivers clear and detailed images. The IP69K protection class ensures reliable protection even in the harshest conditions. Thanks to automatically controlled functions such as white balance, exposure compensation, and brightness adjustment, as well as a light sensitivity of 0.5 Lux, the RVC85WA is optimally suited for various applications.

Specifications

• Camera system ¼“ / 6.4 mm Aptina ASX340 CMOS Sensor
• Focal length lens f1.05
• TV System NTSC / 60 Hz
• Viewing angle 210° (D) x 190° (H) x 140° (V)
• Native sensor resolution 680 (H) x 512 (V) pixels
• Resolution output signal > 420 TV lines
• Frame rate 60 fields/sec.
• Signal-to-noise ratio > 48 dB
• Light sensitivity 0.5 Lux/F1.2/50IRE
• Video Output 1.0 Vp-p, 75 Ohm CVBS
• White Balance Automatic
• Exposure Compensation Automatic
• Gamma Correction 0.45
• Brightness Adjustment Automatic
• Automatic Synchronization
• Power supply DC 5 – 16 V
• Current consumption 60 mA (DC12 V) / ≤ 720 mW
• Protection class IP69K
• Operating temperature -30°C ~ +75°C
• Dimensions front housing 22 x 25 x 27 mm
• Dimensions rear housing 27 x 23 x 35 mm
• Weight 20 g
