Billig ZXE12S4

• Power: 300 W/RMS, 600 W/MAX, Impedance: 4 Ω, Ø 276 mm.
• Voice coil: 64 mm, X-Max: +/17 mm, robust steel basket.
• Efficiency: 92 dB, Y35 magnet: 40 oz, 30 cm subwoofer.
• More technical details

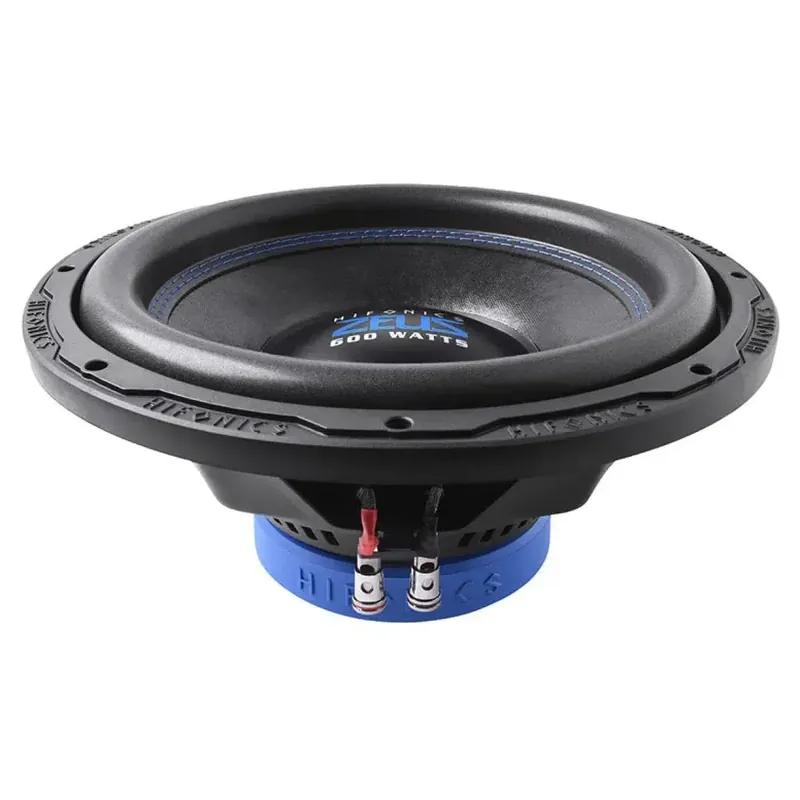

The Hifonics ZXE12S4 is a 12-inch (30 cm) Subwoofer from the Zeus Evolution series featuring Y35 magnets and a 64 mm voice coil. It includes a thermally designed pole core vent and a handcrafted, coated paper cone with double-stitched surround. The X-Max is +/- 17 mm. The magnet system weighs 40 ounces (1.14 kg) and is complemented by a blue magnet protector. A robust steel basket is part of the construction. The efficiency is 92 and 90 dB at 2.83 volts/1 m. The configuration is 4 ohms with 300 W RMS and 600 W Max. The dimensions include a diameter of 276 mm and a depth of 135 mm.

Features

• 12-inch (30 cm) Subwoofer
• Magnet drive with Y35 magnets, 40 ounces (1.14 kg)
• 64 mm voice coil
• X-Max +/- 17 mm
• Double-stitched surround
• Handcrafted, coated paper cone
• Robust steel basket
• Blue magnet protector
• Pole core vent

Technical Specifications

• Size 30 cm (12 inches)
• RMS power 300 W
• Max power 600 W
• Impedance 4 ohms
• Efficiency 92 dB at 2.83 volts/1 m
• Efficiency 90 dB at 2.83 volts/1 m
• Diameter 276 mm
• Mounting depth 135 mm
