Colossus CX12D2 Expressversand

• 4000 W RMS power, max. 8000 W, 2 + 2 ohm impedance.
• 100 mm dual voice coil, X-Max. +/-25 mm, 220° heat resistant.
• 151 dB sound pressure at 75 L volume, double Nomex spider.
• More technical details

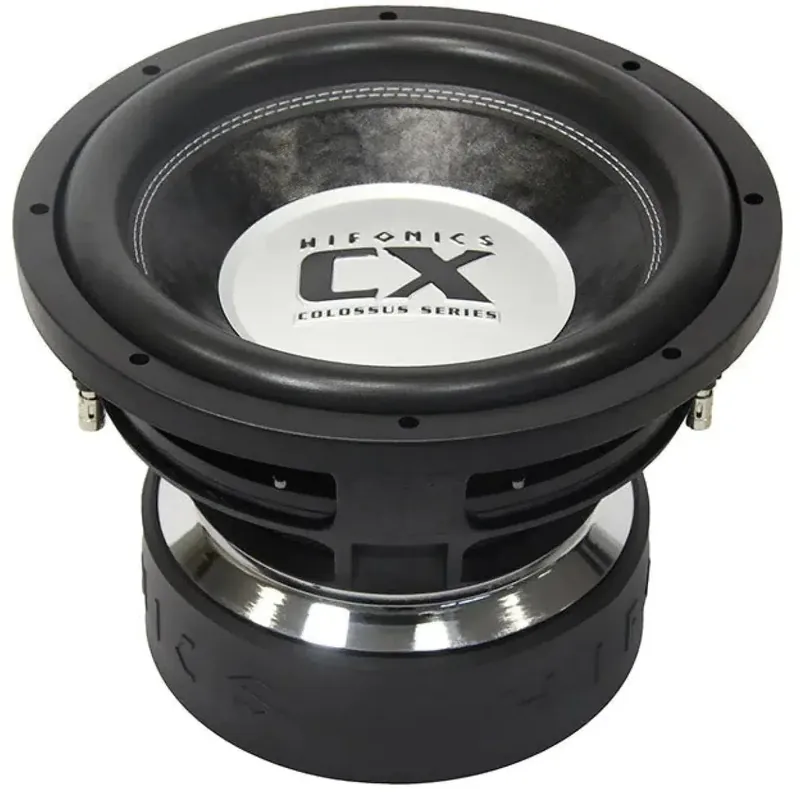

The Hifonics Colossus CX12D2 is a 12-inch (30 cm) Subwoofer with a 100 mm dual voice coil and 2 + 2 ohms. The drive is powered by a triple magnet (3 x 8.08 kg) in combination with an aluminum die-cast basket. The construction includes a double-stitched surround, a dual Nomex spider with double centering, sewn-in leads, a hand-crafted paper cone, and a reinforced aluminum dust cap. X-Max is +/-25 mm. The coils use an aluminum-copper winding with temperature resistance up to 220°. The RMS power is 4000 W, with a maximum power of 8000 W. Also specified are Fs 36 Hz, Qts 0.34, VAS 25 l, and 87 dB. In a volume of about 75 l, a sound pressure of approximately 151 dB is mentioned, complemented by a chrome pole plate.

Features

• 12-inch (30 cm) Subwoofer
• RMS power: 4000 W
• Maximum power: 8000 W
• Impedance: 2 + 2 ohms
• 100 mm dual voice coil
• X-Max: +/-25 mm
• Triple magnet: 3 x 8.08 kg
• Aluminum die-cast basket
• Reinforced aluminum dust cap
• Double-stitched surround
• Dual Nomex spider with double centering
• Hand-crafted paper cone
• Sewn-in leads
• Chrome pole plate
• Aluminum-copper winding, temperature resistant up to 220°
• Sound pressure approx. 151 dB in approx. 75 l
• Sound Quality and SPL

Technical Specifications

• Size: 30 cm (12 inches)
• Fs: 36 Hz
• Qts: 0.34
• VAS: 25 l
• Sensitivity: 87 dB
• Ø 284 mm
• ‡ 224 mm
