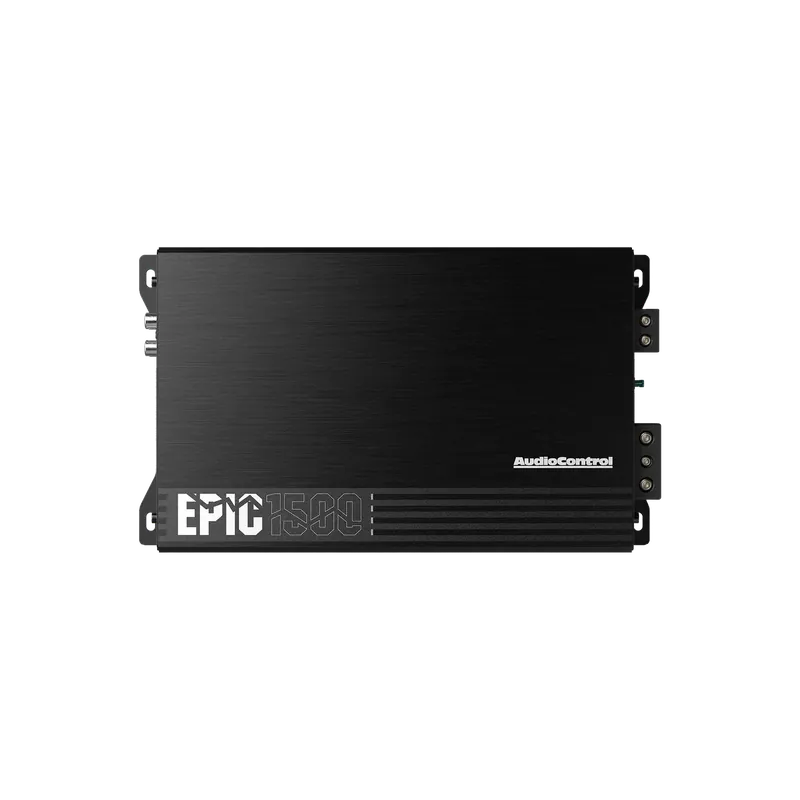

Echt EPIC1500

• Leistung an 1 Ohm: 1500 Watt RMS, Impedanz: 1 Ohm.
• Brückenleistung: 3000 Watt RMS, Frequenzbereich: 10 Hz-190 Hz.
• Low Pass Filter: 40-180 Hz, Subsonic Filter bis 50 Hz.
• More technical details

Discover the EPIC1500 from Audiocontrol, a powerful 1-Channel Amplifier that operates with an impressive 1500 Watts RMS at 1 Ohm. This model offers various customization options with an integrated Epicenter® bass processor and a supplied ACR-E remote controller. The EPIC1500 can be bridged if needed and is equipped with a low pass and subsonic filter to tailor the sound. The power supply connects via a 21.1 mm² terminal, while the speakers connect through an 8.4 mm² terminal. With compact dimensions of 269 mm in length, 155 mm in width, and 51 mm in height, the EPIC1500 is versatile.

Power & Performance:

• Power at 4 Ohm (14.4 V): 1 x 600 Watts RMS

• Power at 2 Ohm (14.4 V): 1 x 1000 Watts RMS

• Power at 1 Ohm (14.4 V): 1 x 1500 Watts RMS

• Bridged Power (Strapped, 2 Ohm): 1 x 3000 Watts RMS

• Frequency Range: 10 Hz – 190 Hz

• Signal-to-Noise Ratio: 92.8 dBa (Ref. 600 W at 4 Ohm)

Filters & Sound Adjustment:

• Low Pass Filter: 40 Hz – 180 Hz (12 dB/Oct. Linkwitz-Riley)

• Subsonic Filter: Off – 50 Hz (12 dB/Oct. Linkwitz-Riley)

• The Epicenter® Boost: Frequency Center 30 Hz – 80 Hz; Gain 0 to 12 dB

• Input Sensitivity: 500 mV – 12 V RMS

Features & Installation:

• Special Feature: Integrated Epicenter® bass processor (including Epicenter Link)

• Remote Control: ACR-E remote controller included

• Bridgeable: Yes

• Recommended Fuse: 150 A

• Power Connection: 21.1 mm² (4 AWG)

• Speaker Connection: 8.4 mm² (8 AWG)

Dimensions (metric):

• Length: 269 mm

• Width: 155 mm

• Height: 51 mm
