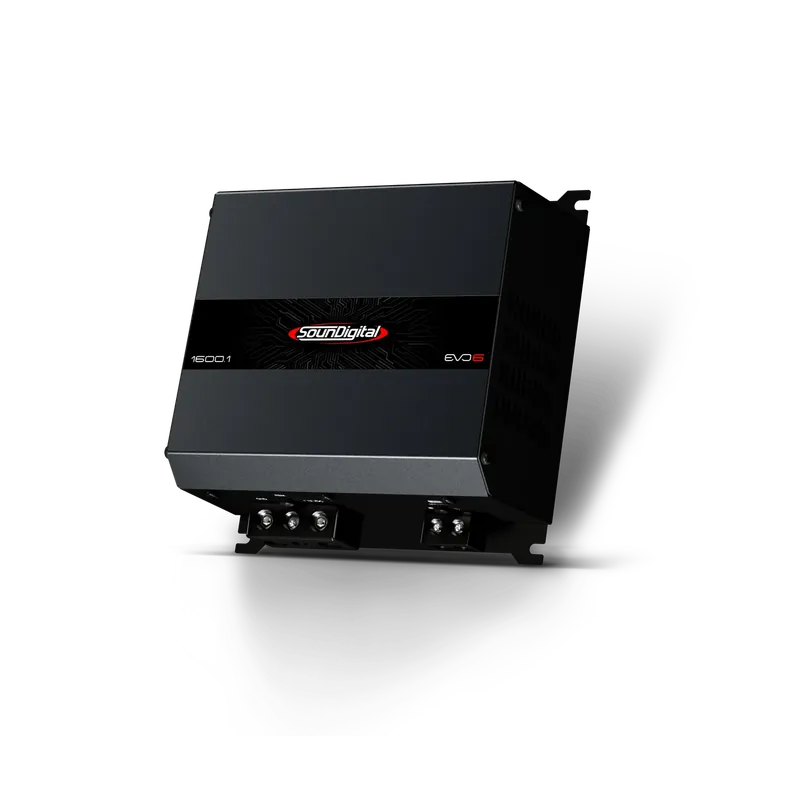

Finale Aktion 1600.1 EVO6

• Power at 1 Ohm: 1 x 1600 Watt RMS, Impedance: 1 Ohm.
• Frequency Response: 5 Hz to 20 kHz, SNR: approx. 90.2 dB.
• Operating Voltage: 10 V to 16 V, Max Current Draw: 150 A.
• More technical details

The 1600.1 EVO6 from Soundigital is a 1-Channel Amplifier that stands out for its flexible power adjustment. It offers an impressive 1600 Watt RMS in the 1-Ohm version and is also available in 2- and 4-Ohm variants. With a frequency range of 5 Hz to 20 kHz and a signal-to-noise ratio of about 90.2 dB, it delivers clear sound quality. The amplifier is designed for an operating voltage of 10 to 16 V and requires a minimum battery capacity of 90 Ah. With compact dimensions of 14.7 cm x 12.9 cm x 6.6 cm and a weight of approx. 1.2 kg, it is ideal for space-saving installation.

Power data

• 1 Ohm version:

  • Power at 1 Ohm: 1 x 1600 Watt RMS

  • Power at 2 Ohm: 1 x 1065 Watt RMS

  • Power at 4 Ohm: 1 x 697 Watt RMS

• 2 Ohm version:

  • Power at 2 Ohm: 1 x 1600 Watt RMS

  • Power at 4 Ohm: 1 x 1065 Watt RMS

• 4 Ohm version:

  • Power at 4 Ohm: 1 x 1600 Watt RMS

Performance & Filter:

• Frequency range (-3 dB): 5 Hz to 20 kHz

• Low Pass Filter (12 dB/oct): 80 Hz to 20 kHz

• High Pass Filter (12 dB/oct): 5 Hz to 80 Hz

• Signal-to-noise ratio (SNR): approx. 90.2 dB

• Input sensitivity (RCA): 200 mV

Power supply & installation:

• Operating voltage: 10 V to 16 V

• Current draw (music / max): 75 A / 150 A

• Recommended fuse (music): 80 A

• Minimum battery capacity: 90 Ah

• Recommended cable cross-section (power): 25 mm²

• Recommended cable cross-section (speaker): 2.5 mm² (for 1 Ohm version: 4.0 mm²)

Dimensions & Weight:

• Length: 14.7 cm

• Width: 12.9 cm

• Height: 6.6 cm

• Weight: approx. 1.2 kg
