Geprüft Inside IC-MBZ-100

• Power 40 watts RMS, impedance 4 ohms, max. 80 W, 88 dB.
• Frequency response from 150 Hz–20 kHz, integrated crossover.
• Midrange speaker 4 inch, flax cone, neodymium magnet, butyl surround.
• More technical details

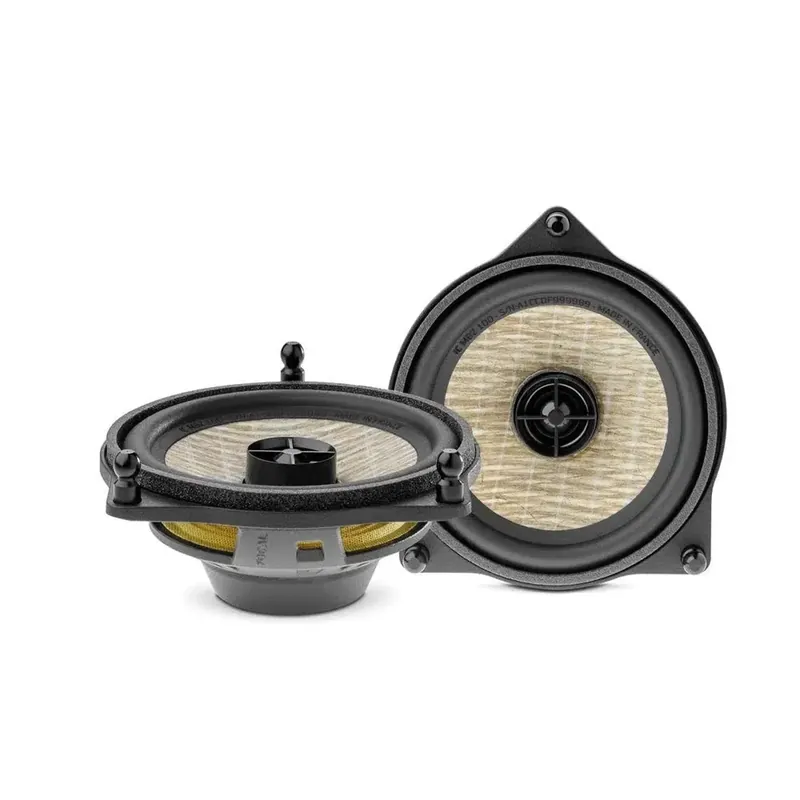

Inside IC-MBZ-100 is a Mercedes Coaxial Speaker from Focal as a 2-way coaxial kit with a midrange speaker 4 inches (100 mm) and a voice coil diameter of 1 inch (25 mm). The voice coil height is 8 mm. The construction includes a neodymium magnet, flat cone, and butyl surround as well as an integrated Crossover. Impedance 4 Ohm, nominal power 40 Watts RMS and maximum power 80 W. Sensitivity 88 dB (2.83 V/1 m) and frequency response 150 Hz–20 kHz. Compatibility with Mercedes C, E, GLC, and S series.

Features

• Mercedes Coaxial Speaker
• 2-way coaxial kit
• Midrange speaker 4 inches (100 mm)
• Voice coil diameter 1 inch (25 mm)
• Voice coil height 8 mm
• Neodymium magnet
• Flat cone
• Butyl surround
• Integrated Crossover
• Compatible with Mercedes C: A205 from 2016 (front door/rear door), C205 from 2015 (front door/rear door), W205 from 2014 (rear door), S205 from 2014 (rear door)
• Compatible with Mercedes E: A238 from 2017 (rear door), C238 from 2017 (rear door), W213 from 2016 (rear door), S213 from 2016 (rear door)
• Compatible with Mercedes GLC: X253 from 2015 (rear door), C253 from 2015 (rear door)
• Compatible with Mercedes S: W222 from 2013

Technical Data

• Impedance 4 Ohm
• Nominal power 40 Watts RMS
• Max. power 80 W
• Sensitivity 88 dB (2.83 V/1 m)
• Frequency response 150 Hz–20 kHz
