HD600/4 Sichere Zahlung

• Power: 4 x 150 W RMS @ 1.5-4 Ω, Impedance: 1.5-4 Ω, Frequency response: 6 Hz 30 kHz.
• S/N ratio: >110 dB, Damping factor: >300 @ 4 Ω, THD+N: <0.03% @ 4 Ω.
• Dimensions: 273 x 211 x 49 mm, Fuse rating: 50 A.
• More technical details

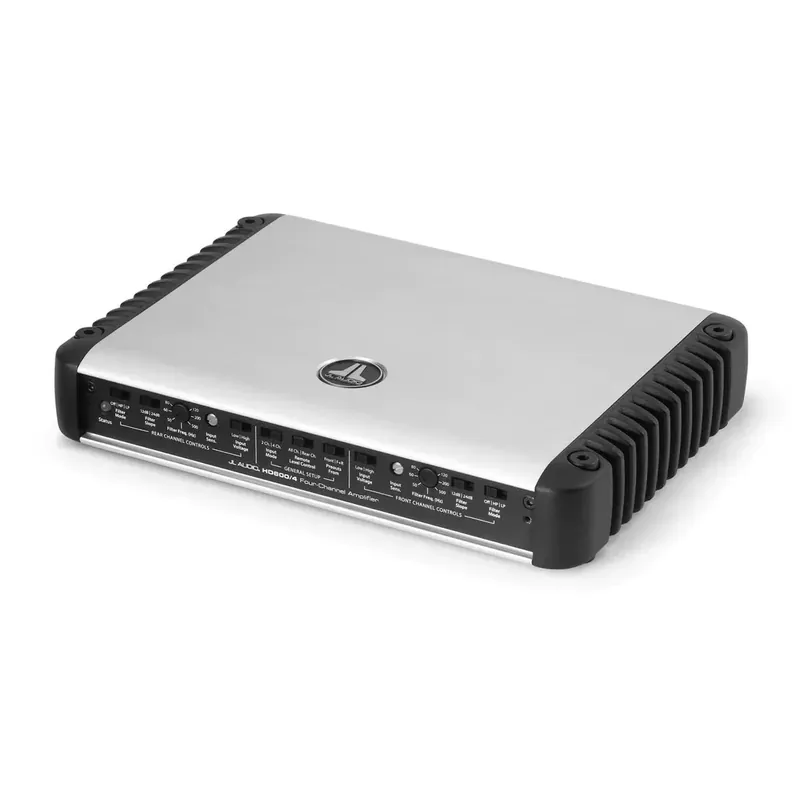

The 4-channel Amplifier HD600/4 from JL Audio offers impressive performance with state-of-the-art Class D technology. Its compact form houses Single-Cycle-Control and R.I.P.S. technology for excellent dynamics and clarity. As a versatile amplifier, it is ideal for various audio applications, complemented by its elegant aluminum finish and robust black heat sinks.

Features

• 4-channel full-range amplifier Class D, 150 W x 4 @ 1.5-4 Ω
• Single-Cycle-Control switching design
• R.I.P.S. technology for consistent performance
• Brushed aluminum finish
• Black powder-coated heat sinks
• Flexible for use as a 3-channel or with Subwoofer

Technical Specifications

• Rated continuous power (RMS) at 14.4 V: 150 W x 4 @ 1.5-4 Ω, bridged operation: 300 W x 2
• Frequency response: 6 Hz – 30 kHz (+0, -1dB)
• S/N ratio: >110 dB (A-weighted)
• Damping factor: >300 @ 4 Ω, >150 @ 2 Ω
• THD+N: <0.03% @ 4 Ω per channel
• Input voltage range: 200 mV – 2 V RMS, 800 mV – 8 V RMS
• Minimum cable diameter: 25mm²
• Fuse rating: 50 A
• Filter: Low-pass or high-pass, 12/24 dB/octave, 50 Hz – 500 Hz
• Dimensions: H 49 mm, W 273 mm, D 211 mm
