HMS 10 S2-LD-SW Preisknaller

• Powerful 250W RMS, 500W Peak, impedance 2 Ohm.
• Voice coil Ø 50 mm, flux ferrite magnet, polypropylene membrane.
• Frequency response 43 Hz, sound pressure 88.5 dB, Qts 0.60, Xmax 12.3 mm.
• More technical details

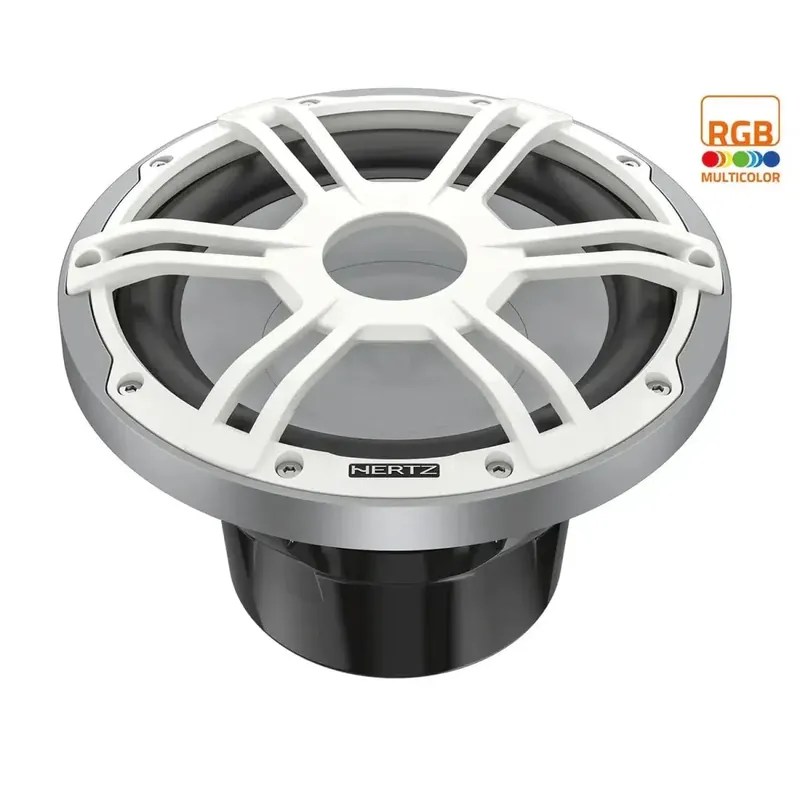

Hertz HMS 10 S2-LD-SW is a 10 inch marine subwoofer with a diameter of 25 cm. The RMS power is 250 W, the peak power is 500 W, and the impedance is 2 Ohm. The design includes a 50 mm voice coil, a high-density ferrite magnet, and a polypropylene diaphragm with UV inhibitors. A removable sport grill with integrated LEDs is included. Designed for operation without a special enclosure. The installation depth is 191 mm; Xmax 12.3 mm and Xmech ±16.3 mm; effective diaphragm diameter 210 mm. Additional specifications: Fs 43 Hz, Re 2.1 Ohm, Le 0.46 mH, Vas 30.46 l, Mms 75.6 g, Cms 0.18 mm/N, BL 8.3 T*m, Qts 0.60, Qes 0.63, Qms 12.3, sound pressure level 88.5 dB. Weight per component 5.1 kg; magnet size 140 x 60 x 30 mm.

Features

• 10 inch Subwoofer
• Diameter 25 cm
• RMS power 250 W
• Peak power 500 W
• Impedance 2 Ohm
• Voice coil 50 mm
• Diaphragm polypropylene with UV inhibitors
• Magnet ferrite with high density
• Installation depth 191 mm
• Removable sport grill with integrated LEDs
• Operation without special enclosure
• Weight 5.1 kg

Technical data

• Size 250 mm
• Effective diaphragm diameter D 210 mm
• Magnet size 140 x 60 x 30 mm
• Xmax 12.3 mm
• Xmech ±16.3 mm
• Re 2.1 Ohm
• Fs 43 Hz
• Le 0.46 mH
• Vas 30.46 l
• Mms 75.6 g
• Cms 0.18 mm/N
• BL 8.3 T*m
• Qts 0.60
• Qes 0.63
• Qms 12.3
• Sound pressure level 88.5 dB
• Dimension A 277 mm
• Dimension B 230 mm
• Dimension C 191 mm
• Dimension D 145 mm
• Dimension F 46 mm
• Compact sealed box Vb 50 l
• Compact sealed box Fb 54 Hz
• Compact sealed box Qtc 1.05
• Compact sealed box W 440 mm
• Compact sealed box H 440 mm
• Compact sealed box D 365 mm
• Compact sealed box mounting hole 230 mm
• Compact sealed box wood thickness 19 mm
• Compact sheet cut A 440 x 440 mm Quantity 2
• Compact sheet cut B 440 x 327 mm Quantity 2
• Compact sheet cut C 402 x 327 mm Quantity 2
• Sealed box Vb 71 l
• Sealed box Fb 51 Hz
• Sealed box Qtc 0.99
• Sealed box W 460 mm
• Sealed box H 460 mm
• Sealed box D 450 mm
• Sealed box mounting hole 230 mm
• Sealed box wood thickness 19 mm
• Sheet cut A 460 x 460 mm Quantity 2
• Sheet cut B 460 x 412 mm Quantity 2
• Sheet cut C 422 x 412 mm Quantity 2
