Jetzt Kaufen DBA 201

• Power: 440W peak, 220W RMS, Impedance: 0.4 Ohm.
• Housing: Double passive radiator, voice coil: Ø 38.6 mm.
• Frequency response: 32-400 Hz, Magnet: High Density Flux Ferrite.
• More technical details

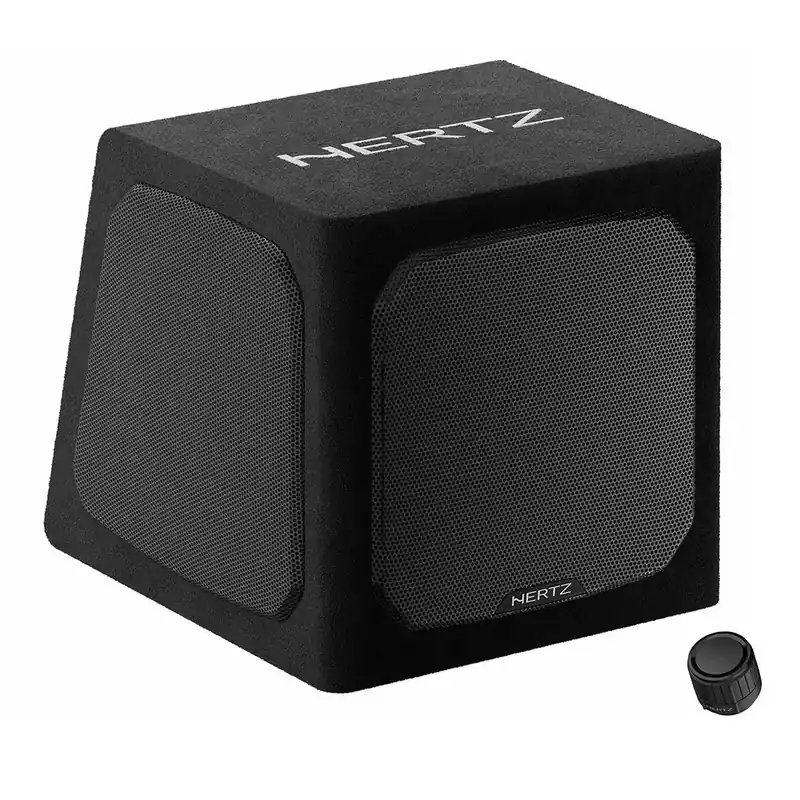

The Hertz DBA 201 is an 8-inch (20 cm) active enclosure subwoofer with 220 W RMS and 440 W peak power. The design utilizes a dual passive radiator in the enclosure and an integrated low-pass filter. An automatic power-on and standby mode is available. The construction includes a high-density flux ferrite magnet, a cone made of pressed paper, and a copper voice coil with a diameter of 38.6 mm. The frequency response ranges from 32 to 400 Hz with an impedance of 0.4 Ohm. The operating voltage is between 6.5 to 18 VDC with a 15 A fuse and a 6 VDC start-stop voltage. The magnet size is 115 x 47 x 25 mm, and the weight is 6.7 kg. The PRE input signal turn-on is at 10 mV VRMS, remote IN power-on at 4 VDC (1 mA), and SPK input DC power-on at 2 VDC. Plug & play connection is available.

Features

• 8-inch (20 cm) active enclosure subwoofer
• RMS power 220 W
• Peak power 440 W
• Impedance 0.4 Ohm
• Design: dual passive radiator in the enclosure
• Integrated low-pass filter
• Automatic power-on and standby mode
• Plug & play connection
• Magnet: high-density flux ferrite
• Cone: pressed paper
• Voice coil: copper

Technical Specifications

• Speaker size 200 mm
• Voice coil diameter 38.6 mm
• Frequency response 32–400 Hz
• Magnet size 115 x 47 x 25 mm
• Weight 6.7 kg
• Operating voltage 6.5–18 VDC
• Fuse 15 A
• Start-stop voltage 6 VDC
• Max. current draw at 14.4 VDC (music power) 8.5 A
• Remote IN power-on 4 VDC (1 mA)
• PRE input signal turn-on 10 mV VRMS
• SPK input DC power-on 2 VDC
