Kostenloser Rückversand Mini Bass Meter

• Sound pressure measurement, max. deviation 0.1 dB, voltage.
• Autonomous, no calibration, cigarette lighter connection.
• Compact housing, 3 control buttons, mini USB.
• More technical details

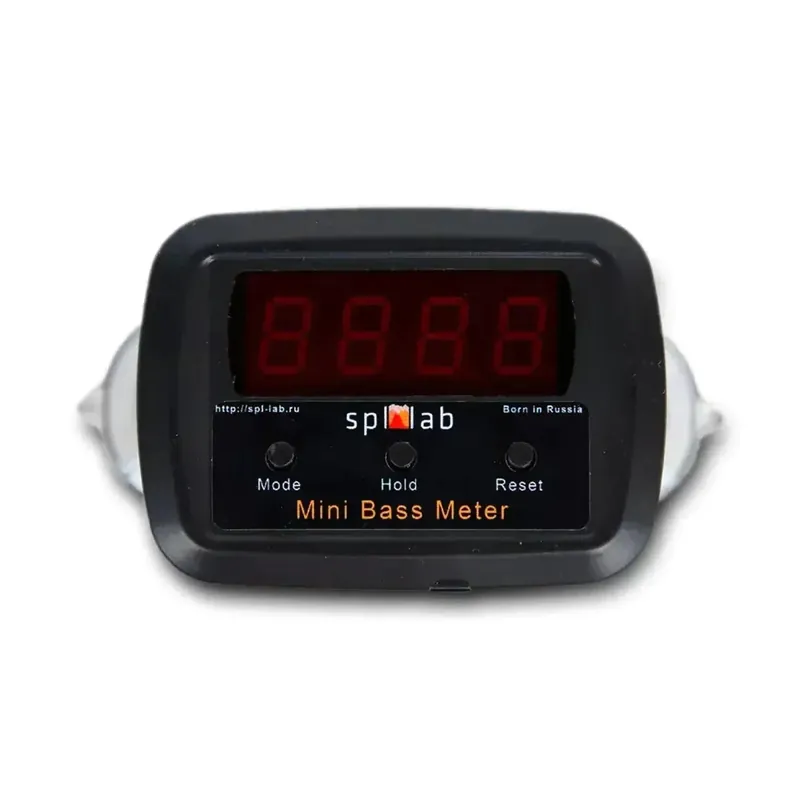

Mini Bass Meter is an SPL Meter from SPL Lab for sound pressure and noise measurements in the low-frequency range. It captures the sound pressure level as well as voltage, current, and the frequency of the peak spectrum. The frequency range is 20 to 120 Hz, the amplitude range is 120 to 160 dB, and the voltage range is 1 to 20 volts. The deviation from the Termlab Meter is a maximum of 0.1 dB. The device operates completely autonomously, features a bright display, and is calibrated according to TERM-LAB Classic and Magnum. A compact housing with four segments, 3 control buttons, a mini-USB port for power supply and firmware updates, as well as a socket for the cigarette lighter are integrated. The software is updatable, and a mounting option for the windshield is available.

Features

• SPL Meter
• Autonomous operation without software
• Bright display
• Compact housing with four segments
• 3 control buttons
• Mini-USB port for power supply and firmware updates
• Socket for cigarette lighter
• Mounting option for windshield available
• Calibrated according to TERM-LAB Classic and Magnum
• Updatable software
• Measurement of sound pressure level (SPL)
• Voltage measurement
• Current measurement
• Measurement of maximum voltage
• Measurement of minimum voltage
• Voltage measurement at the time of the highest SPL value
• Measurement of the frequency of the peak spectrum
• Noise measurement
• Speaker mode like Subwoofer
• Scope of delivery: Mini Bass Meter and cable for connection to the cigarette lighter

Technical Specifications

• Frequency range: 20 to 120 Hz
• Amplitude range: 120 to 160 dB
• Voltage range: 1 to 20 volts
• Deviation from the Termlab Meter: maximum 0.1 dB
