Legend 3 Neue Ware

• Efficiency 26%, thickness 3 mm, waterproof material.
• Sheet size 750 x 470 mm, self-adhesive, 50-micron film.
• Waterproof adhesive, 1.6 kg sheet weight, sheet area 0.35 sqm.
• More technical details

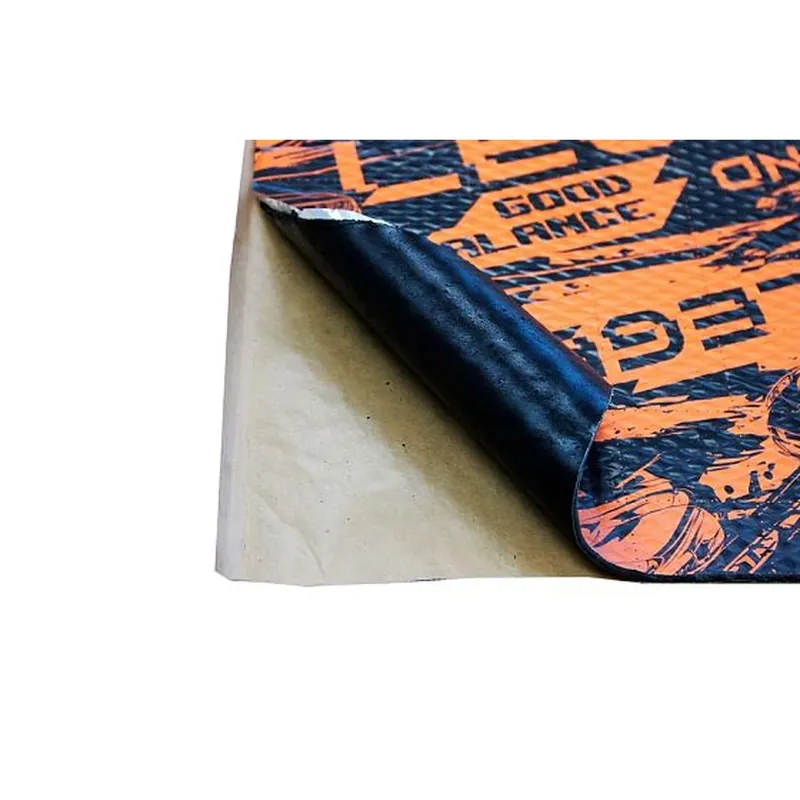

The STP Legend 3 is a vibration-damping insulation with a material thickness of 3 mm. The individual mats have a sheet size of 750 x 470 mm and are equipped with a 50-micrometer thick film. The composite material has an efficiency of 26 percent and a weight of approximately 4.8 kg per square meter. The properties of the material and the adhesive are waterproof and self-adhesive. Each set includes 10 mats, with a single sheet weighing approximately 1.6 kg. The surface area of a sheet is 0.35 sqm. Intended application areas include arches in the outer treatment as well as the hull and floor.

Features

• Insulation
• Thickness: 3 mm
• Sheet size: 750 x 470 mm
• Number per set: 10 mats
• Vibration-damping composite material
• Efficiency: 26 percent
• Self-adhesive
• Waterproof material and waterproof adhesive
• Film thickness: 50 micrometers
• Application areas: arches, hull, floor

Technical Data

• Weight per sqm: approximately 4.8 kg
• Weight per sheet: approximately 1.6 kg
• Surface area per sheet: 0.35 sqm
