Mercury IV/800 EVO Highlight

• Power: 4×125/200 W/RMS at 4/2 Ω, efficient and powerful.
• Impedance: 2×400 W/RMS @ 4 Ω bridged, versatile.
• HPF: 10-4000 Hz, LPF: 50-4000 Hz, optimized frequency control.
• More technical details

The Mercury IV/800 EVO is a 4-Channel Amplifier from Hifonics in Class A/B analog design. The power output is 4 x 125 W RMS at 4 Ohm, 4 x 200 W RMS at 2 Ohm, and 2 x 400 W RMS bridged at 4 Ohm. Filter sections include HPF 10–4000 Hz on CH1/2 and CH3/4, LPF 50–4000 Hz on CH3/4, Bass Boost 0–12 dB on CH3/4, and a bandpass function on CH3/4. Features include a heavy aluminum heat sink, cast end pieces with hidden mounting channels, and encapsulated power and speaker connections. On the input side, there are high-level inputs with EPS (Error Protection System), RCA inputs, a 2CH/4CH input selector switch, and a CH3/4 > CH1/2 dupe function. Additional features include an automatic turn-on function and a bass level remote control, with dimensions of 205 x 46 x 388 mm, the amplifier is designed for high efficiency.

Features

• 4-Channel Amplifier
• Class A/B Analog
• Heavy aluminum heat sink
• Cast end pieces with hidden mounting channels
• Encapsulated power and speaker connections
• High-level inputs with EPS (Error Protection System)
• Automatic turn-on function

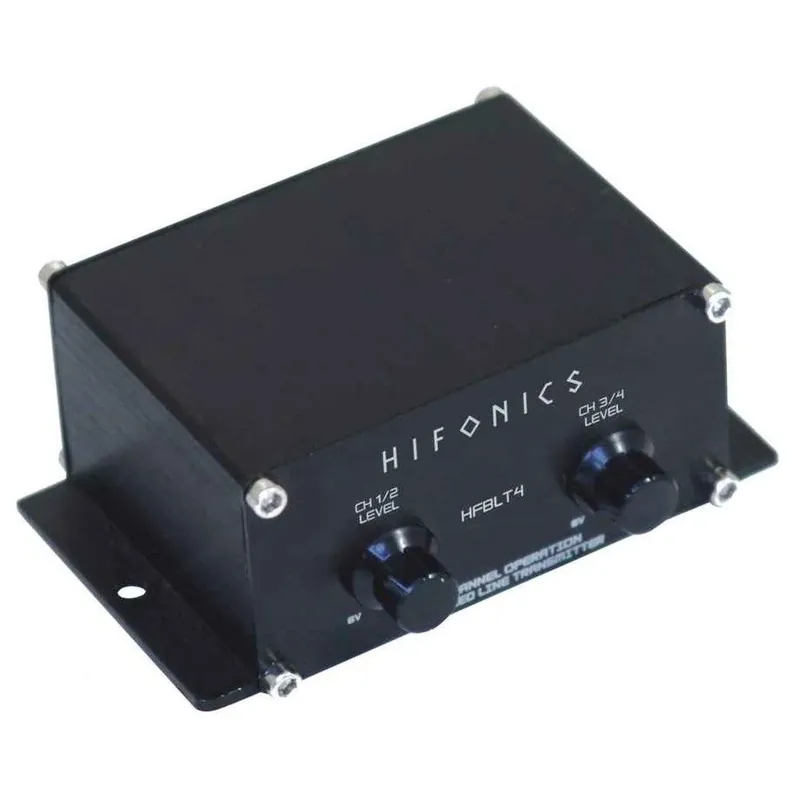

• Bass level remote control
• RCA inputs
• Input selector switch 2CH/4CH
• CH3/4 > CH1/2 dupe function
• Bandpass function (CH3/4)
• High efficiency

Technical Specifications

• Power: 4 x 125 W RMS @ 4 Ohm
• Power: 4 x 200 W RMS @ 2 Ohm
• Bridged power: 2 x 400 W RMS @ 4 Ohm
• HPF 10–4000 Hz (CH1/2)
• HPF 10–4000 Hz (CH3/4)
• LPF 50–4000 Hz (CH3/4)
• Bass Boost 0–12 dB (CH3/4)
• Dimensions: 205 x 46 x 388 mm
