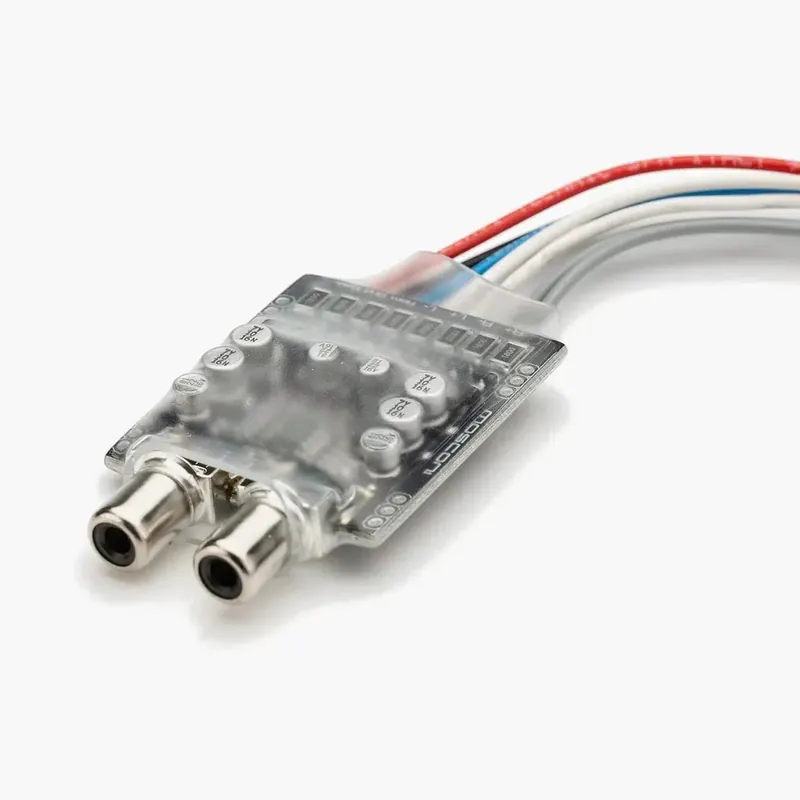

Mosconi HLA-SLIM Preiswert

• Load capacity up to 50 watts, impedance at 45 ohms per channel.
• Harmonic distortion below 0.01%, signal-to-noise ratio over 100 dB.
• Remote output loadable up to 100 mA, short circuit protection active.
• More technical details

The Mosconi HLA-SLIM is a High-Low Adapter from Gladen with a slim design without a plastic housing and plug. It features a very compact form factor. The maximum permissible rated load is 50 W x CH, and the remote output can handle up to 100 mA. The standby power consumption is under 0.8 mA, and the operating current draw is under 15 mA (under 30 mA in the dual version), and it also has protection against polarity reversal. The remote out delivers over 12 V at Irem-out under 100 mA, has short-circuit protection, and a maximum short-circuit duration of under 10 s. Technical specifications include total harmonic distortion under 0.01%, rise time of 10 V/µs, S/N over 100 dB, channel separation over 60 dB, common-mode noise rejection over 60 dB, and down-conversion of 4:1 V/V. The high-level input ballast impedance is 45 Ohm/2 W per channel, the maximum continuous power is 25 W RMS x CH at 4 Ohm, the maximum output signal is 3.2 Vrms at THD under 0.1%, and the minimum output load impedance is 2 kOhm. Made in Italy.

Features

• High-Low Adapter
• Slim design without plastic housing and plug
• Very compact form factor
• Maximum permissible rated load 50 W x CH
• Remote output can handle up to 100 mA
• Made in Italy

Technical Data

• Standby power consumption < 0.8 mA
• Operating current draw < 15 mA (< 30 mA in the dual version)
• Protection against polarity reversal Yes
• Remote out voltage > 12 V at Irem-out < 100 mA
• Remote out short-circuit protection Yes (against ground)
• Maximum short-circuit duration at remote out < 10 s
• Total harmonic distortion < 0.01 %
• Rise time 10 V/µs
• S/N ratio > 100 dB
• Channel separation > 60 dB
• Common-mode noise rejection > 60 dB
• Down-conversion ratio 4:1 V/V
• High-level input ballast impedance 45 Ohm / 2 W per channel
• Maximum continuous power (sine) at 4 Ohm 25 W RMS x CH
• Maximum permissible rated load of the head unit 50 W x CH
• Maximum output signal at THD < 0.1 % 3.2 Vrms
• Minimum output load impedance 2 kOhm
• Minimum permissible load at remote out 120 Ohm
• Remote out maximum current output 100 mA (normal operation)
