Neue Ware W8-2314

• Leistung 50 Watt RMS,80-40.000 Hz,Frequenzgang 4 Ohm Impedanz.
• Neodym-Motordesign,geringe Verzerrung,Bambusfaserkegelsorgt.
• 90 dB Empfindlichkeit,Resonanzfrequenz 38 Hz, Induktivität 0,072 mH.
• More technical details

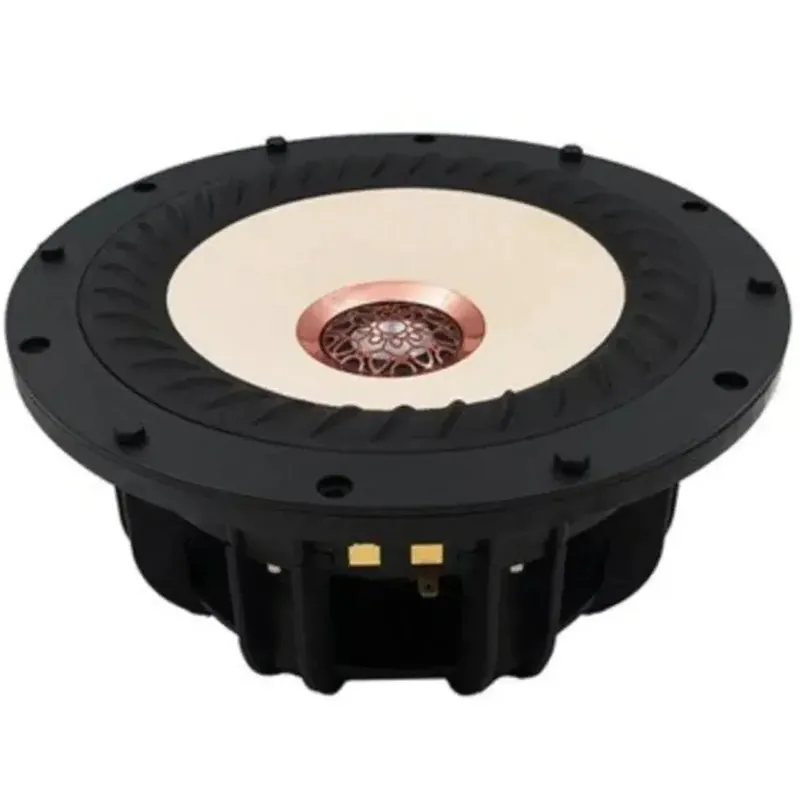

The Tang Band W8-2314 is an 8 „(20cm) coaxial speaker. With a rare full area reaction of 38-40,000 Hz and a subtle neodymium motion design for extremely low distortion, this loudspeaker raises the acoustic experience on a new level And an aluminum/magnesium high-tone scale ensure a high frequency extension, which makes this model a remarkable representative of its kind.

Characteristics

• 8 „(20cm) coaxial speaker with 25mm tweeter
• Incredible full area reaction of 38 – 40,000 Hz
• Support neodymium motion design offers extremely low distortion
• Use the famous bamboo fiber cone by Tang Band
• Aluminum/magnesium high-tone scale offers extremely high frequency extension

parameter

• Nominal diameter 8 „
• Resilience (RMS) 50 watts
• Resilience (max) 100 watts
• Impedance 4 ohm
• Frequency response 38 to 40,000 Hz
• Sensitivity 90 dB 1W/1m
• Vibril diameter 1.75 „
• Resonance frequency (FS) 38 Hz
• DC resistance (right) 3.6 Ohm
• Inductance of the vibration coil (LE) 0.072 MH
• Mechanical quality (QMS) 2.14
• Electromagnetic quality (Qes) 0.37
• Total Q (QTS) 0.31
• Subject equivalent volume (VAS) 1.8 ft.³
• Mechanical flexibility of the suspension (CMS) 0.7459 mm/n
• BL product (BL) 7.4 TM
• Mass of the membrane Inc. Air load (MMS) 23.14g
• Maximum linear deflection (Xmax) 6 mm
