Perfect Match G-Class Stage 1 Direkt Vom Hersteller

• Bass power of 5000 watts RMS, 2x 15″ subwoofers, impressive power.
• Amplifier offers 5000W at 1 Ohm, dynamic wattage 7000.
• RCA input voltage 8 0.2V, frequency response 20-500 Hz.
• More technical details

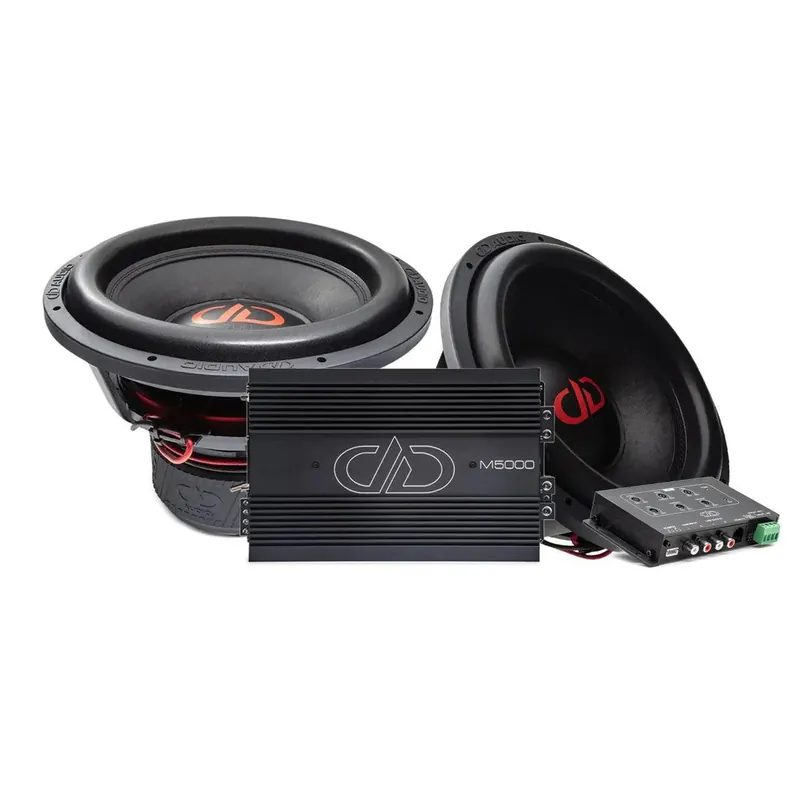

Perfect Match G-Class Stage 1 is a Mercedes Complete Set from Masori with 5000 Watt RMS bass power and two 15 inches Subwoofers. A Class D Halfbridge Amplifier in Korean design is included, complemented by a power supply upgrade. The set is individually adjustable and designed for the Mercedes G-Class and comparable models. Included are 2x DD Audio Power Tuned 715F D4, 1x DD Audio M5000, and 1x DD Audio BSI. Additionally, a Four Connect Stage2 OFC Flex 50mm² cable set, a Power Cell 4000L additional battery, and an SMD PNC-3 ANL Power Distributor are included. A Stage2 2x4mm² OFC speaker cable with a length of 15 meters is also included.

Features

• Mercedes Complete Set
• Complete Set for the Mercedes G-Class and comparable models
• 5000 Watt RMS Bass Power
• 2x 15 inches Subwoofers
• Class D Halfbridge Amplifier (Korean Design)
• Power Supply Upgrade
• Individually adjustable
• Included in Stage 1: 2x DD Audio Power Tuned 715F D4
• Included in Stage 1: 1x DD Audio M5000
• Included in Stage 1: 1x DD Audio BSI
• Included in Stage 1: 1x Four Connect Stage2 OFC Flex 50mm²
• Included in Stage 1: 1x Power Cell 4000L
• Included in Stage 1: 1x SMD PNC-3 ANL
• Included in Stage 1: 1x Stage2 2x4mm² OFC 15m

Technical Data

• DD Audio Power Tuned 715F D4 Subwoofer: 15 inches
• DD Audio Power Tuned 715F D4 Subwoofer: 1500 Watt RMS
• DD Audio Power Tuned 715F D4 Subwoofer: 4500 Watt Peak Power
• DD Audio Power Tuned 715F D4 Subwoofer: Xmech 100 mm
• DD Audio Power Tuned 715F D4 Subwoofer: Xmax 22 mm
• DD Audio Power Tuned 715F D4 Subwoofer: Mounting Diameter 35.2425 cm
• DD Audio Power Tuned 715F D4 Subwoofer: Mounting Depth 23.8125 cm
• DD Audio M5000 Amplifier: Operating Voltage 9-16
• DD Audio M5000 Amplifier: Test Voltage 14.4
• DD Audio M5000 Amplifier: Input Channel(s) 1
• DD Audio M5000 Amplifier: Continuous Power @4ohm 1900
• DD Audio M5000 Amplifier: Continuous Power @2Ohm 3000
• DD Audio M5000 Amplifier: Continuous Power @1Ohm 5000
• DD Audio M5000 Amplifier: Dynamic Power 7000
• DD Audio M5000 Amplifier: Maximum Current Draw 700 Amperes
• DD Audio M5000 Amplifier: RCA Input Sensitivity Voltage 8 – 0.2
• DD Audio M5000 Amplifier: RCA Input S/N > 97
• DD Audio M5000 Amplifier: Damping Factor > 400
• DD Audio M5000 Amplifier: Frequency Response 20 – 500 Hz
• DD Audio M5000 Amplifier: Subsonic Filter 20 – 250 Hz
• DD Audio M5000 Amplifier: Low Pass Filter 50 – 500 Hz
• DD Audio M5000 Amplifier: ZVL Input Yes
• DD Audio M5000 Amplifier: Pass Thru Output No
• DD Audio M5000 Amplifier: Remote Control included
• DD Audio M5000 Amplifier: Power Cable Gauge 2 x 50 mm
• DD Audio M5000 Amplifier: Speaker Wire Gauge 10
• DD Audio M5000 Amplifier: Dimensions 340 x 230 x 66 mm
• DD Audio BSI Signal Converter: Operating voltage 10 – 16
• DD Audio BSI Signal Converter: Input channel(s) 2
• DD Audio BSI Signal Converter: Output channel(s) 2
• DD Audio BSI Signal Converter: Sensitivity of RCA input voltage 0.5 – 5v / 1 – 10v
• DD Audio BSI Signal Converter: Sensitivity of high-level input voltage 2 – 20v / 4 – 40v
• DD Audio BSI Signal Converter: RCA output voltage > 10v
• DD Audio BSI Signal Converter: RCA input impedance ≥ 20k
• DD Audio BSI Signal Converter: High-level input impedance 180
• DD Audio BSI Signal Converter: RCA output impedance ≥ 50
• DD Audio BSI Signal Converter: RCA input S/N ≥ 105dBA
• DD Audio BSI Signal Converter: High-level input S/N ≥ 106dBA
• DD Audio BSI Signal Converter: Total harmonic distortion 0.05%
• DD Audio BSI Signal Converter: Frequency response 15 Hz – 20 kHz
• DD Audio BSI Signal Converter: Subsonic filter 15 Hz – 50 Hz 24 dB/Oct
• DD Audio BSI Signal Converter: Low-pass filter 50 Hz – 500 Hz 24 dB/Oct
• DD Audio BSI Signal Converter: Remote control included
• DD Audio BSI Signal Converter: Output current of remote control 12V >500 mA
• DD Audio BSI Signal Converter: Dimensions 155 x 87.4 x 27 mm
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 5.2 m 50mm² OFC power cable
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 0.8 m 50mm² OFC grounding cable
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 6 m conduit
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 5.5 m triple-shielded RCA cable
• Four Connect Stage2 OFC Flex 50mm² Cable Set: ANL fuse 200A
• Four Connect Stage2 OFC Flex 50mm² Cable Set: waterproof mini-ANL fuse holder
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 2 x ring terminals
• Four Connect Stage2 OFC Flex 50mm² Cable Set: 2 x fork terminals
• Power Cell 4000L Additional Battery: Peak load capacity 3750A
• Power Cell 4000L Additional Battery: Dimensions L x W x H 30.0 x 16.5 x 21 cm
• Power Cell 4000L Additional Battery: Capacity 110Ah
• Power Cell 4000L Additional Battery: Weight 34kg
• Power Cell 4000L Additional Battery: Technology AGM
• Power Cell 4000L Additional Battery: Battery type high current battery
• SMD PNC-3 ANL Power Distributor: CNC-milled fuse holder
• SMD PNC-3 ANL Power Distributor: For connecting 3 positive power cables and 6 negative
• SMD PNC-3 ANL Power Distributor: Connections made of aluminum
• SMD PNC-3 ANL Power Distributor: Sealed against corrosion
• SMD PNC-3 ANL Power Distributor: For ANL fuses
• SMD PNC-3 ANL Power Distributor: Proudly made in California, USA
• Stage2 2x4mm² OFC 15m Speaker Cable: 2x4mm² cross-section
• Stage2 2x4mm² OFC 15m Speaker Cable: 100% OFC copper
• Stage2 2x4mm² OFC 15m Speaker Cable: Insulation made of silicone-based rubber
• Stage2 2x4mm² OFC 15m Speaker Cable: 15 meter long spool
• Stage2 2x4mm² OFC 15m Speaker Cable: Color gray with red marking
