Prime R2-500X1 Nur Für Kurze Zeit

• 500W 1-channel, Class-D, CLEAN setting, RLC level remote control.
• Balanced inputs, variable infrasonic filter, RCA pass-through.
• Fully adjustable switches, short circuit and overcurrent protection.
• More technical details

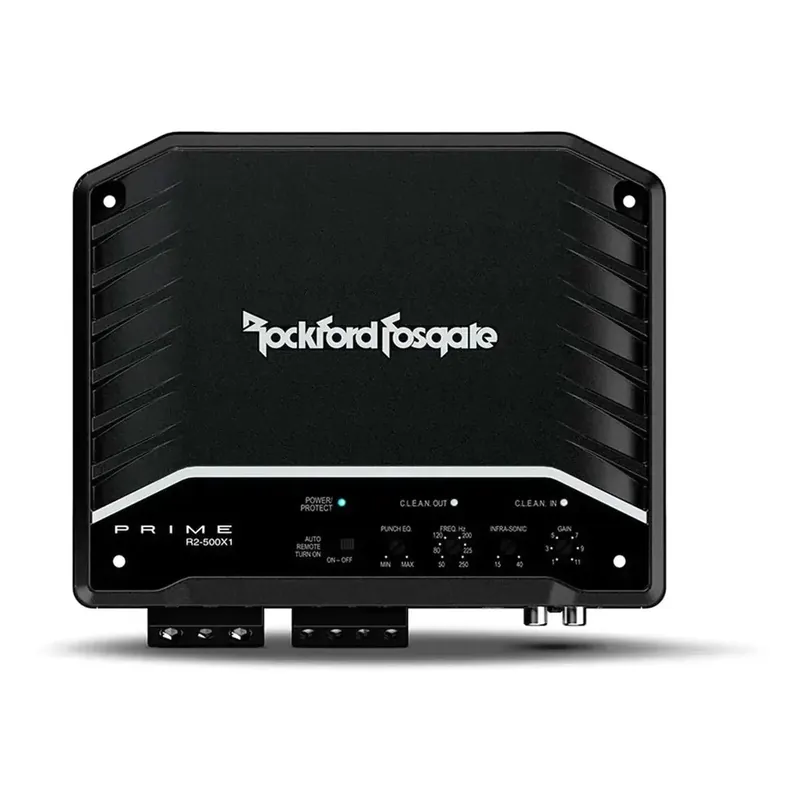

Rockford Fosgate Prime R2-500X1 is a 1-Channel Amplifier with Class-D topology and aluminum die-cast heat sink. It features symmetrical differential inputs with RCA pass-through outputs and a high-level input via 4-pin Molex, with variable input gain. An auto-sense bypass switch for vehicles with RAP (Retained Accessory Power), the C.L.E.A.N. setting, and an RLC level remote control are included. Top-mounted control panel, variable infrasonic filter, continuously variable on-board punch EQ, as well as fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters. Short circuit and overcurrent protection, as well as CEA-2006 and CE compliance. RMS continuous power is 300 Watts x 1 at 4 Ohms and 500 Watts x 1 at 2 Ohms, dynamic power is 350 Watts x 1 at 4 Ohms and 590 Watts x 1 at 2 Ohms. Frequency response is 20 Hz to 250 Hz, operating voltage is 9 to 16 V DC, recommended fuse is 80 A. Maximum current draw is 52 A, input sensitivity is 150 mV to 4 V (low-level) and 450 mV to 12 V (high-level), signal inputs are 2x RCA and 4-pin Molex, signal output is 2x RCA pass-thru, dimensions are 4.9 cm x 17.3 cm x 21.5 cm.

Features

• 1-Channel Amplifier
• Class-D topology
• Aluminum die-cast heat sink
• Top-mounted control panel
• Symmetrical differential inputs with RCA pass-through outputs
• High-level input compatible
• Variable input gain setting
• Auto-sense bypass switch for vehicles with RAP (Retained Accessory Power)
• C.L.E.A.N. setting
• Includes RLC level remote control
• Variable infrasonic filter
• Continuously variable on-board punch EQ
• Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters
• Short circuit and overcurrent protection
• CEA-2006 compliant
• CE compliant

Technical Specifications

• RMS continuous power 300 Watts x 1 @ 4 Ohms
• RMS continuous power 500 Watts x 1 @ 2 Ohms
• Dynamic power 350 Watts x 1 @ 4 Ohms
• Dynamic power 590 Watts x 1 @ 2 Ohms
• Frequency response 20 Hz – 250 Hz
• Input sensitivity low-level 150 mV – 4 V
• Input sensitivity high-level 450 mV – 12 V
• Signal input low-level 2x RCA
• Signal input high-level 4-pin Molex
• Signal output low-level 2x RCA (pass-thru active with RCA or high-level input)
• Sound control 0 to +18 dB at 45 Hz
• Low-pass 50 Hz – 250 Hz @ 12 dB/octave Butterworth
• Infrasonic 15 Hz – 40 Hz @ 12 dB/octave Butterworth
• Operating voltage 9 – 16 V DC
• Recommended fuse 80 A
• Max. current draw (13.8 V sine wave) 52 A
• Dimensions 4.9 cm x 17.3 cm x 21.5 cm
