RS-W10D2/D4 Angebot

• Power of 600 W RMS, 1800 W peak, impedance 2 Ohm + 2 Ohm.
• 4-inch heat-resistant voice coil, 20 mm cone excursion.
• Frequency response 25 Hz 100 Hz, sensitivity of 79 dB (1W/1M).
• More technical details

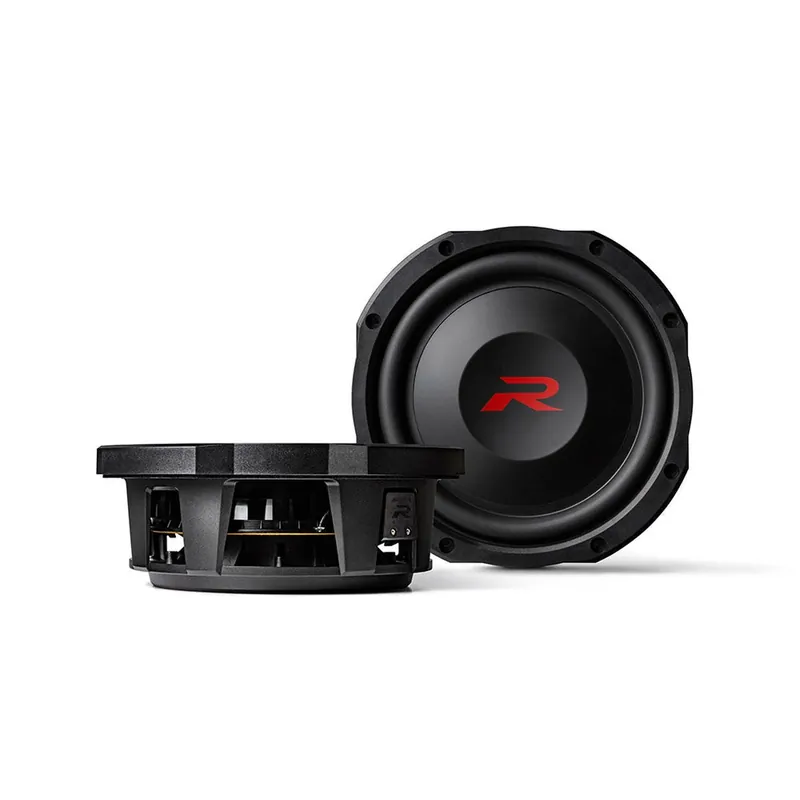

The RS-W10D2/D4 from Alpine is a 10-inch flat subwoofer with an RMS power handling of 600 watts and a peak power of 1800 watts. The ultra-flat design is complemented by Alpine’s Gen2 DD Linear Magnetic Circuit technology and a powerful neodymium magnet. The construction includes an aluminum die-cast basket as well as a lightweight and stable aluminum diaphragm. A 4-inch heat-resistant voice coil with a diameter of 102 mm allows for a maximum diaphragm movement of 20 mm. The impedance is specified as 2 Ohm + 2 Ohm, while the frequency response covers the range from 25 Hz to 100 Hz. The mounting depth is 81 mm with a cutout size of 243 mm.

Features

• 10-inch (25 cm) flat subwoofer
• Alpine Gen2 DD Linear Magnetic Circuit technology
• Aluminum die-cast basket
• Aluminum diaphragm
• Neodymium magnet
• 4-inch heat-resistant voice coil
• Stable screw terminals
• Power: 600 watts RMS
• Power: 1800 watts Peak
• Impedance: 2 Ohm + 2 Ohm
• Compatible with KTE-RS10G subwoofer cover

Technical Specifications

• X-Max: 20 mm
• Frequency response: 25 Hz – 100 Hz
• Sensitivity (1W/1M): 79 dB
• Voice coil: 102 mm
• Cutout size: 243 mm
• Mounting depth: 81 mm
• Recommended enclosure sealed: 13.9 liters – 29.4 liters
