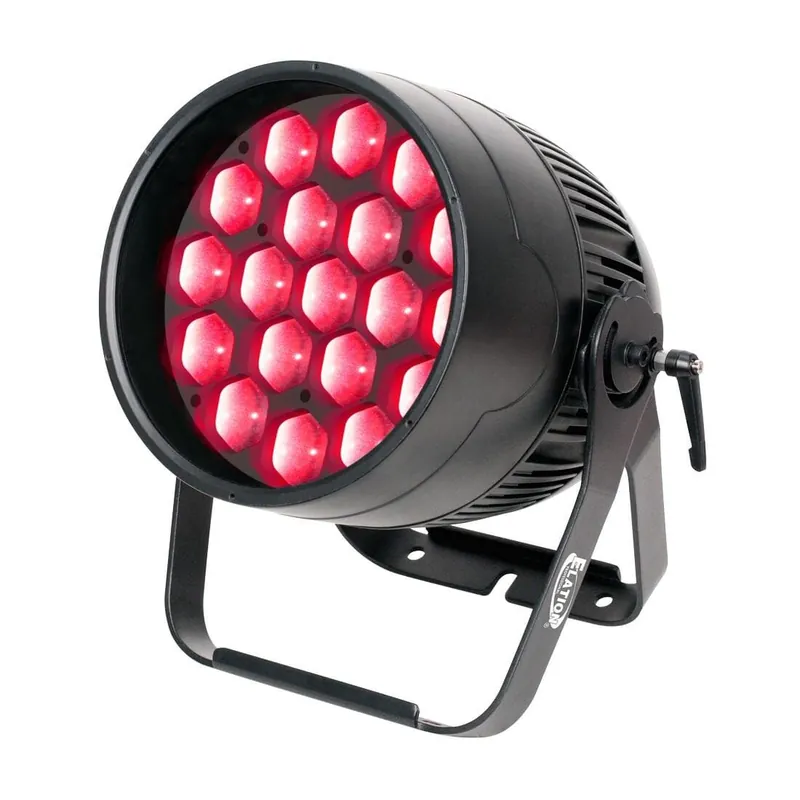

Saisonangebot Elation SIXPAR Z19 IP 6-In-1 RGBAW+UV LED's und Zoom

Der SIX PAR Z19 IP ist ein Outdoorfähiger 6 Farb-LED Wash-Scheinwerfer mit Zoom. Bestückt 19 individuell einsetzbare 6-In-1 RGBAW+UV LED's mit motorisiertem Zoom von 5° bis 45°, elektronischem Strobe und variabler Dimmerkurve, IP-zertifiziertem 5-Pin DMX, Powercon TRUE1-Serie (in/out) und flackerfreiem Betrieb für Film und Fernsehen.

FEATURES

• IP65 Rated 6-Color Par Wash Luminaire
• 5° to 45° Motorized Zoom
• 395nm UV LED Wavelength
• Rugged Die-Cast Aluminum Exterior
• Multiple Unit Power Linking
• IP Rated DMX and powerCON TRUE1 Connections
• Flicker Free Operation for TV and FILM

SOURCE

• (19) 15W 6-in-1 RGBAW+UV LEDs
• 100,000 Hour Average LED Life*

PHOTOMETRIC DATA

• 13,240 LUX 1,230 FC @9.8’ (3m) (5° Full ON)
• 831 LUX 77 FC @9.8’ (3m) (45° Full ON)

COLOR

• RGBAW+UV

EFFECTS

• 5° – 45° Beam Zoom
• RGBWA + UV Color Mixing
• Color and Chase Program Macros
• Electronic Strobe and Variable Dim Curves

CONTROL / CONNECTIONS

• 4 DMX Channel Modes (14 Total Channels)
• RDM (Remote Device Management)
• 4 Button Touch Control Panel
• 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• IP Rated 5pin DMX and powerCON TRUE1 Power In/Out

SIZE / WEIGHT

• Length: 15.9" (363mm)
• Width: 12.0" (305mm)
• Vertical Height: 15.6" (396mm)
• Weight: 27 lbs. (12.2 kg)

ELECTRICAL / THERMAL

• AC 110-250V – 50/60Hz
• 282W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• UV Wavelength: 395nm

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming

Allgemein

Abstrahlwinkel in Grad (min.)—-5
LED Typ—-6-in-1 Hex-chip
LED Nennleistung—-280
DMX-Scheinwerfer—-Ja
RGB—-Ja
(Kalt)Weiss—-Ja
Warmweiss—-Nein
Amber—-Ja
UV—-Ja
Zoom—-Ja
Flat-Bauform—-Nein
Lüfterlos—-Nein
Outdoor—-Ja
Fernbedienung—-Nein
Akku-Scheinwerfer—-Nein
Funk-DMX generell—-Nein
Dimmbar—-Ja
