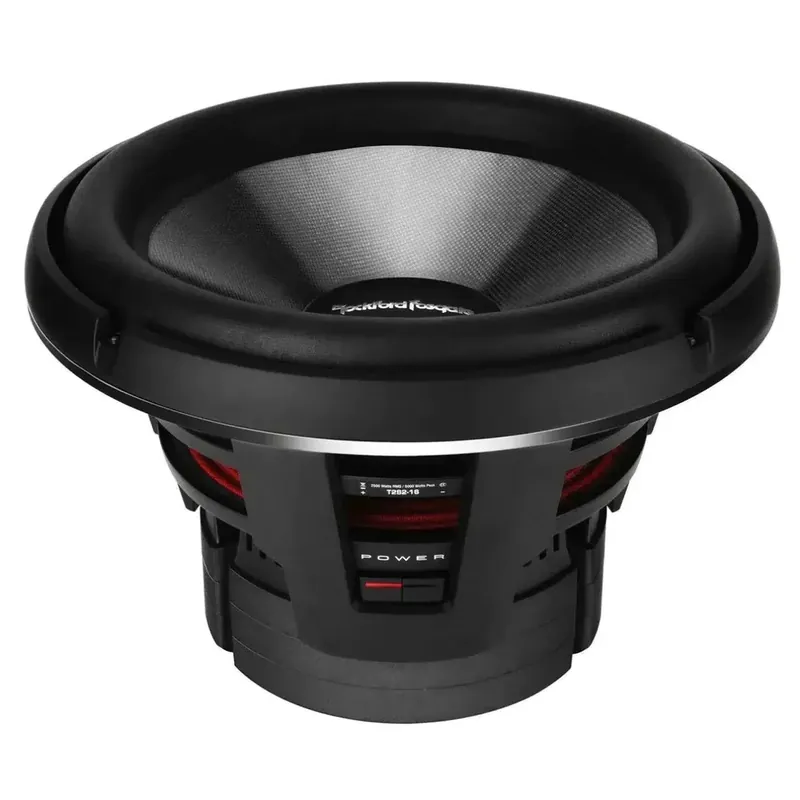

Sale Power T2S2-16 / T2S1-16

• 5000W Max, 16″ subwoofer, IDHS heatsink.
• Three-layer fiberglass membrane, die-cast aluminum frame.
• 2-ohm/1-ohm impedance, 2500W RMS, 100mm voice coil.
• More technical details

Rockford Fosgate Power T2S2-16 / T2S1-16 is a 15 inch (38 cm) Subwoofer from the Power T2 series. The manufacturer Rockford Fosgate relies on a three-layer fiberglass/aramid honeycomb/fiberglass diaphragm, an aluminum dust cap, and an injection molded foam surround with VAST. The drive unit includes a single layer, edge-wound 100 mm aluminum voice coil, a triple stacked segmented ferrite motor structure, and an integrated aluminum short circuit ring (IDHS) with a ventilated pole piece. Two progressive Nomex centering spiders with integrated connection wires guide the moving assembly. The aluminum die-cast frame features integrated cooling fins and a removable die-cast aluminum cover ring. On the connection side, insulated 8 mm² spring clips are available. The power handling is 2500 watts RMS and 5000 watts maximum, the mounting depth is 266 mm, and the cutout is 382 mm. The magnet weight is 15 kg, the displacement volume is 8.2 liters, and the shipping weight is 45.7 kg. Available as a single voice coil with 1-Ohm or 2-Ohm nominal impedance.

Features

• 15 inch (38 cm) Subwoofer
• Single voice coil, available in 1 Ohm and 2 Ohm
• Three-layer fiberglass/aramid honeycomb/fiberglass diaphragm
• Aluminum dust cap
• Injection molded foam surround with VAST
• Two progressive Nomex centering spiders with integrated connection wires
• Proprietary mechanical clamp ring for the surround
• Aluminum die-cast frame with integrated cooling fins
• Insulated 8 mm² connections with spring clip
• Removable die-cast aluminum cover ring
• Single layer, edge-wound aluminum voice coil
• Ventilated pole piece
• Triple stacked, segmented ferrite motor structure
• Integrated aluminum short circuit ring (IDHS)

Technical specifications

• Nominal power handling RMS: 2500 watts
• Maximum power handling: 5000 watts
• Voice coil diameter: 100 mm
• Magnet weight: 15 kg
• Mounting depth: 266 mm
• Cutout diameter: 382 mm
• Displacement volume of the woofer: 8.2 liters
• Shipping weight: 45.7 kg
• 2-Ohm variant:
• Nominal impedance: 2 Ohm
• Voice coil type: Single voice coil
• Fs: 28.5 Hz
• Qes: 0.56
• Qms: 3.76
• Vas: 90.1 liters
• Le: 0.91 mH
• Qts: 0.49
• Sd: 1034 cm²
• Xmax: 34 mm
• Re: 1.6 Ohm
• SPL (1 W/1 m): 90 dB
• SPL (2.8 V/1 m): 93 dB
• Closed enclosure volume (Vb): 67.9 liters
• Bass reflex enclosure volume (Vb): 155 liters
• 1-Ohm variant:
• Nominal impedance: 1 Ohm
• Voice coil type: Single voice coil
• Fs: 28.5 Hz
• Qes: 0.57
• Qms: 3.73
• Qts: 0.49
• Re: 0.9 Ohm
• Le: 0.53 mH
• Sd: 1034 cm²
• Xmax: 34 mm
• SPL (1 W/1 m): 89 dB
• Vas: 84.5 liters
• SPL (2.8 V/1 m): 92 dB
• Closed enclosure volume (Vb): 67.9 liters
• Bass reflex enclosure volume (Vb): 155 liters
