Stroker ST12 Must-Have

• 12″ subwoofer, 2000W max, 1000W RMS, 2×2/2×4 ohm impedance.
• Raised engine structure, stroker centering spiders, large surround.
• High sound pressure level, extreme bass reproduction, innovative design.
• More technical details

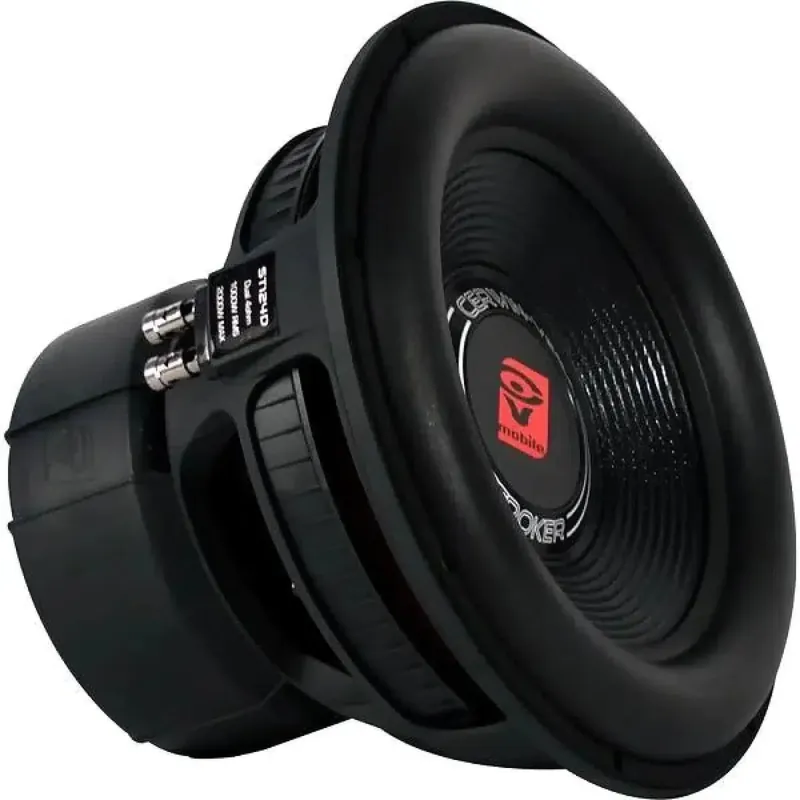

The Cerwin Vega Stroker ST12 is a 12 inch (30 cm) Subwoofer designed for high sound pressure level (SPL). The nominal power is 1000 Watts RMS, with a maximum power handling of 2000 Watts. The impedance is available in either 2×2 Ohm or 2×4 Ohm. The sensitivity is 84.6 dB. Enhanced motor structure for cooling, Stroker centering spiders, and large surround. Installation depth is 205.7 mm and mounting hole diameter is 282.5 mm.

Features

• 12 inch (30 cm) Subwoofer
• Manufacturer: Cerwin Vega
• RMS power: 1000 Watts
• Maximum power handling: 2000 Watts
• Impedance: 2×2 Ohm or 2×4 Ohm
• Enhanced motor structure for cooling
• Stroker centering spiders
• Large surround
• Installation depth: 205.7 mm
• Mounting hole diameter: 282.5 mm
• Designed for high sound pressure level (SPL)

Technical Data

• SPL: 84.6 dB
• Re (Series): 3.3 Ω
• Qms: 3.3
• Qes: 0.51
• Qts: 0.44
• Fs: 29.0 Hz
• Vas: 39.2 L
• Cms: 0.116 mm/N
• Mms: 260.0 g
• Sd: 0.049 m²
• BL: 17.5 T·m
• Xmax: 16.4 mm
