Super-Preis RAGE69X

• 100 watts RMS, 90 dB SPL, 50 Hz 30 kHz frequency.
• 4 Ohm impedance, 3.4 Ohm Re, 1″ coil size.
• 74 mm installation depth, 6.48″ x 9.22″ outer diameter.
• More technical details

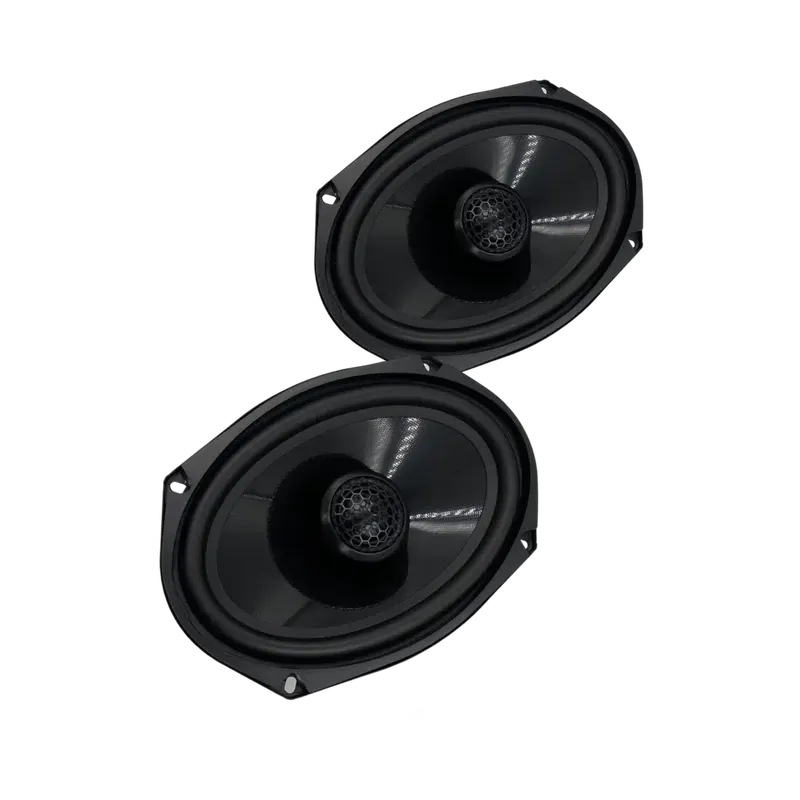

The RAGE69X from B2 Audio is a powerful 6×9 inch coaxial speaker. With a frequency range of 50 Hz to 30 KHz and a sound pressure level (SPL) of 90 dB, it delivers impressive audio experiences. The impedance is 4 Ohms, and the RMS power is 100 Watts. Additional features include a coil size of 1″ and a mounting depth of 74 mm. The outer diameter measures 6.48 inches x 9.22″, and the cutout size is 219.39 x 121.56 mm.

Technical Specifications

• Frequency Range: 50 Hz ~ 30 KHz
• SPL: 90 dB
• Impedance: 4 Ohms
• DC Resistance (RE): 3.4 Ohms
• Resonant Frequency: 55 Hz
• RMS Power: 100 Watts
• QMS: 6.43
• QES: 0.93
• QTS: 0.815
• VAS: 24.26 L
• Coil Size: 1″
• Recommended Crossover: N/A
• BL^2/RE: 5.17
• Mounting Depth: 74 mm
• Outer Diameter: 164mm x 234mm
• Cutout Size: 219.39 x 121.56 mm
