Top-Seller HTX 8 M-CL-TC

• High power handling 100 W RMS, 200 W peak, impedance 4 Ohm.
• Frequency response from 45 Hz to 25 kHz, 32 mm woofer coil.
• Neodymium magnet in the 20 mm tweeter, high sound clarity.
• More technical details

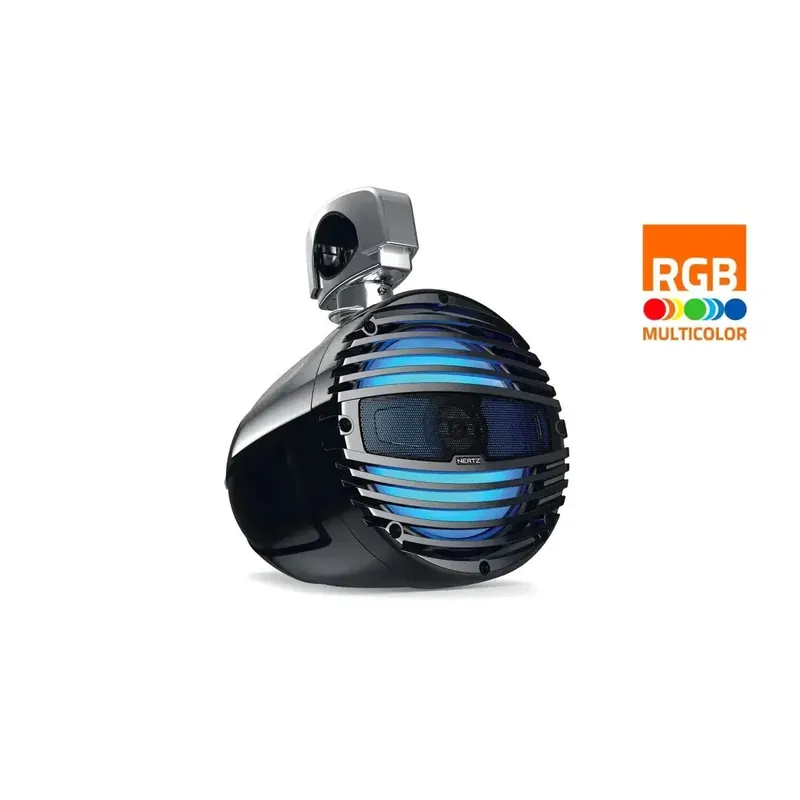

Hertz HTX 8 M-CL-TC is an 8 inch marine enclosure speaker with RGB LED lighting, clamp fastening made of 316 stainless steel, and Q-OS² technology. The front RGB lighting is integrated into the grille; a rear RGB lighting is available as HTX RGB LOGO.1 add-on in black or white. The tower can be aligned horizontally in 18 steps of 20° each, the logo is adjustable in 64 steps. The clamp structure integrates a multi-pole high current connection and rubber inserts for vibration damping and fits round 38–76 mm as well as square pipe profiles. Certification according to IP65, ASTM-D4329, and ASTM-B117. Coaxial design with 32 mm long-stroke woofer with polypropylene membrane and UV inhibitors as well as neodymium tweeter. Rated power handling 100 W RMS, 200 W peak, impedance 4 Ohm, frequency response 45–25,000 Hz, depth 288 mm, weight 5.4 kg.

Features

• 8 inch marine enclosure speaker
• Manufacturer: Hertz
• RGB LED lighting at the front of the grille; rear RGB lighting optional via HTX RGB LOGO.1 in black or white
• Clamp fastening made of 316 stainless steel, suitable for round and square profiles
• Q-OS² technology Quick Orientation & Release for Sound & Safety
• Horizontal alignment in 18 steps of 20° each
• Adjustable logo in 64 steps
• Multi-pole high current connection integrated in the clamp structure
• Rubber inserts for vibration damping
• Suitable for round pipes 38–76 mm as well as square pipes or roof mounting
• Hertz Pure Marine Certified: IP65, ASTM-D4329, ASTM-B117
• Coaxial system with 32 mm long-stroke woofer, polypropylene membrane with UV inhibitors
• Neodymium tweeter
• Size 200 mm
• Depth 288 mm
• Weight 5.4 kg
• Power handling RMS 100 W
• Power handling peak 200 W
• Impedance 4 Ohm
• Frequency response 45–25,000 Hz

Technical specifications

• Size 200 mm
• Power handling RMS 100 W
• Power handling peak 200 W
• Impedance 4 Ohm
• Depth 288 mm
• Woofer voice coil Ø 32 mm
• Tweeter voice coil Ø 20 mm
• Frequency response 45–25,000 Hz
• Woofer magnet size 90 x 40 x 20 mm
• Tweeter magnet size 19.7 x 3 mm
• Weight of a speaker 5.4 kg
• Woofer magnet flux ferrite with high density
• Tweeter magnet neodymium
• Membrane polypropylene with UV inhibitors
• Xmech ±8.5 mm
• D 174 mm
• Re 3.4 Ohm
• Fs 51 Hz
• Le 0.46 mH
• Vas 26.1 l
• Mms 30 g
• Cms 0.33 mm/N
• Bl 6.33 T·m
• Qts 0.78
• Qes 0.82
• Qms 14.7
• SPL 91 dB
• A 225 mm
• B 288 mm
• D 50 mm
• G 38–76 mm
• H 12 mm
