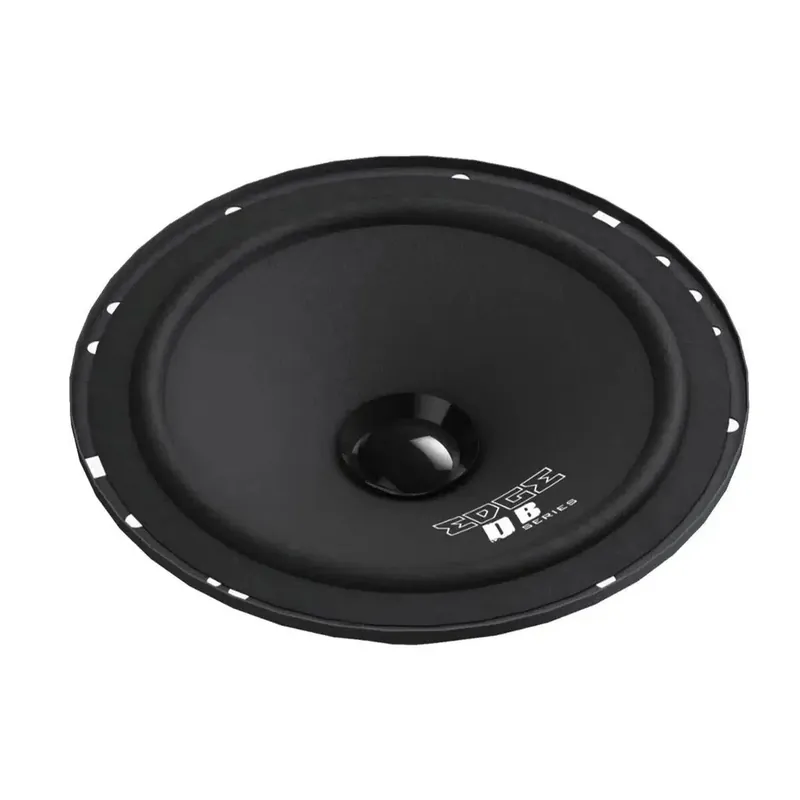

Neuheit DB EDB6W-E0

• High power of 200 watts, impedance of 4 Ω, frequency range 70Hz-15500Hz.
  Sensitivity at 94 dB, textile surrounds, steel basket for stability.
  Ferrite magnet for high sound fidelity, installation depth of 57 mm, compact.
• More technical details

The DB EDB6W-E0 from EDGE is a 6.5-inch coaxial speaker that stands out for its vibrant sound and robust construction. With an impedance of 4 Ω and a frequency range of 70Hz to 15500Hz, it offers impressive sound quality. The speaker has a high power handling capacity of up to 200 watts and a sensitivity of 94 dB. The materials, such as textile for the surround, steel for the basket, and ferrite for the magnet, contribute to its durability. Discover how this speaker adds a new dimension to your audio experience.

Technical Specifications

• 6.5-inch coax
• Diameter 6.5 inches 165mm
• Impedance 4 Ω
• Frequency range 70Hz – 15500Hz
• Power handling RMS 100 watts
• Power handling MAX 200 watts
• SPL (sensitivity) 94 dB
• Surround material textile
• Mounting depth 57mm
• Mounting diameter 141mm
• Basket material steel
• Magnet material ferrite
• Voice coil diameter 1 inch 25.4mm
