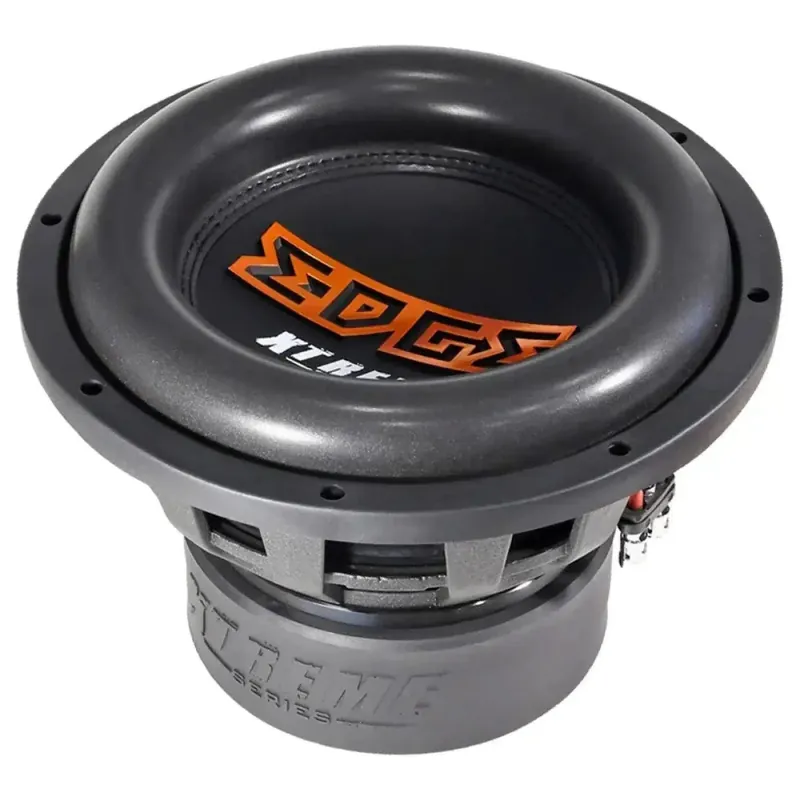

Xtreme EDX12D2-E3 Preisreduziert

• 12″ subwoofer, 2000W RMS, 4000W peak power.
• Unpressed paper cone, bass reflex enclosure recommended.
• 3 inch aluminum coil, 190mm magnet, 321mm diameter.
• More technical details

The Xtreme EDX12D2-E3 is a 12-inch (30 cm) Subwoofer from EDGE with an RMS power of 2000 W and a peak power of 4000 W. The impedance is double 2 Ohm. The cone is made of unpressed paper membrane, the surround is made of large roll foam, double stitched, and the dust cap is a custom processed IMPP. A 76.2 mm coil made of black aluminum and a spider made of 4 pieces of black Nomex are integrated. Other features include a rubber gasket, a 15 mm black anodized top plate, and a 15 mm flat, black anodized T-bar. The connection is made via a spring-loaded Plug with fittings for 8 mm² cables. The magnet is designed with 190 mm x 95 mm x 3 pieces. For the enclosure, a bass reflex with 49.5 liters and 133 cm² port at 40 cm length or 65 liters and 174 cm² port at 50 cm length is recommended, with a tuning frequency of 30–34 Hz; closed enclosure is not recommended, the dimensions are 321 mm outer diameter, 281 mm installation diameter, and 171 mm installation depth.

Features

• 12-inch (30 cm) Subwoofer
• Membrane: unpressed paper membrane
• Surround: large roll foam, double stitched
• Dust cap: custom processed IMPP
• Gasket: rubber
• Top plate: 15 mm, black anodized
• T-bar: 15 mm, flat, black anodized
• Dimensions: outer diameter 321 mm
• Installation diameter: 281 mm
• Installation depth: 171 mm
• Enclosure: closed enclosure not recommended
• Bass reflex enclosure minimum: 49.5 liters, port 133 cm², length 40 cm
• Bass reflex enclosure optimal: 65 liters, port 174 cm², length 50 cm
• Recommended tuning frequency: 30–34 Hz

Technical Data

• Impedance: double 2 Ohm
• RMS power: 2000 W
• Peak power: 4000 W
• Coil: 76.2 mm, black aluminum
• Spider: 4 pieces, black Nomex
• Terminal/Wire: spring-loaded Plug
• Fittings: for 8 mm² cables
• Magnet: 190 mm x 95 mm x 3 pieces
